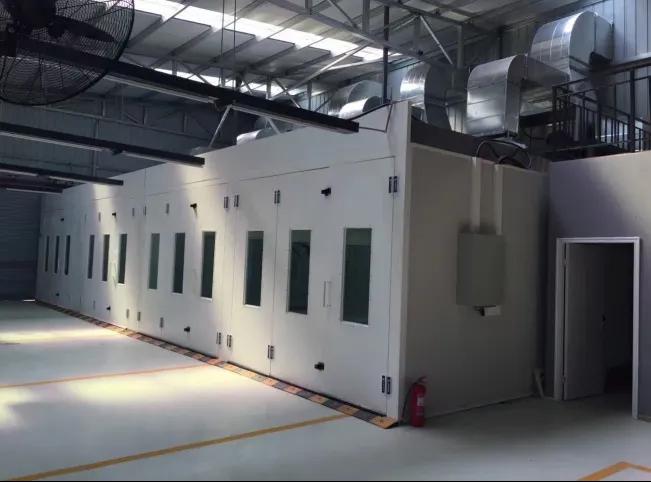

European-Style Electric Spray Booth with Basement
- SKU
- SPB-001
- Unit
- each
- Min. Order
- 1
$27,236.66· each
Documents
Description
European-style electric spray booth with a raised basement floor system. Outside dimensions 7000×5560×3610mm with a 6900×4000×2810mm working interior and a 3200×2700mm entry gate. Twin 7.5kW large-impeller fans (one inlet, one exhaust) each rated for 30,000m³ real measured airflow. Ceiling lighting is 8 groups of 4 LED lamps, supplemented by 10 groups of 3-lamp short-wave infrared heating panels for bake cycles. Wall panels are 50mm rock wool (80kg/m³ density, 10-year wallboard warranty). Floor is a 35cm-height checkered-plate deck over two rows of floor grids. Runs on 480V/3-phase/60Hz.
Specifications
| fans | 1× 7.5kW inlet fan (30,000m³ real measured capacity), 1× 7.5kW exhaust fan (30,000m³ real measured capacity) |
|---|---|
| floor | 35cm height, checkered plate deck over two rows of floor grids |
| voltage | 480V / 3 Phase / 60Hz |
| gateSize | 3200×2700mm (W×H) |
| warranty | 3 years |
| innerSize | 6900×4000×2810mm (L×W×H) |
| wallPanel | 50mm rock wool, 80kg/m³ density, 10-year wallboard warranty |
| ceilingLight | 8 groups × 4 LED lamps |
| infraredHeating | 10 groups short-wave infrared lamps, 3 lamps per group |
| outsideDimensions | 7000×5560×3610mm (L×W×H) |
