Electric Heating Spray Booth — Model OBC-E4
- SKU
- OBC-E4
- Unit
- each
- Min. Order
- 1
$21,983.12· each
FOB price per unit. One booth ships in a 20ft container; three ship in a 40ft container.
7.0×5.35×3.4m electric spray booth with infrared curing, 25,000 m³/h intake, 43kW total power.
Features
- •32 × 36W LED ceiling lights in eight units; side lights optional
- •Side-upper intake plenum with electric damper actuation between spray and bake cycles
- •2 × 3kW double-intake centrifugal inlet fans, 25,000 m³/h total
- •5.5kW double-intake centrifugal exhaust fan, 16,000 m³/h
- •Three-stage filtration: >83% at 10μm primary, >98% at 4μm ceiling, >70% multi-layer fiberglass floor
- •Intelligent control system: spraying, heat spraying, baking, temperature and time setting, emergency stop
Description
Electric-heating spray booth with a strong bending-steel three-fold main door (3000×2600 mm) with handle and lock, plus a 650×1800 mm personnel door with handle and anti-explosion lock. Walls are high-quality double-construction 50mm EPS insulation panels with 0.4mm steel skins, anti-flame and heat-insulating, under a galvanized steel roof. The full-metal 300mm foundation carries two rows of galvanized flat-steel grilles and three rows of galvanized painted non-slip diamond plate, with two 620×2000 mm diamond-plate ramps. Heating is by 10 infrared curing lamp units (3 × 1kW lamps each, 30kW total) reaching 80°C, with a 20→80°C ramp in 15–20 minutes.
Specifications
| Heating | 10 infrared curing lamp units, 3 × 1kW lamps per unit, 30kW total |
|---|---|
| Main door | 3-fold bending steel, 3000 × 2600 mm, handle and lock |
| Inlet fans | 2 × 3kW double-intake centrifugal, 25,000 m³/h total |
| Exhaust fan | 5.5kW double-intake centrifugal, 16,000 m³/h |
| Total power | 43 kW |
| Wall panels | 50mm EPS double-construction insulation, 0.4mm steel, anti-flame |
| Power supply | 380V, 50Hz, 3-phase (customizable) |
| Personnel door | 1-fold, 650 × 1800 mm, handle and anti-explosion lock |
| Inside dimensions | 6900 × 3900 × 2650 mm (L×W×H) |
| Outside dimensions | 7000 × 5350 × 3400 mm (L×W×H) |
| Max baking temperature | 80°C; 20→80°C in 15–20 minutes |
Related Products
PMR-4200

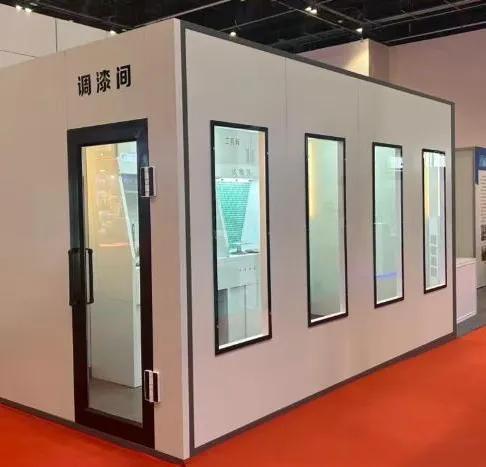

Paint Mixing Room — 4.2m
Fully-equipped 4.2m paint mixing room with explosion-proof lighting, extraction, and a four-zone mixing cabinet.
$9,640.30· each
XSB-5800

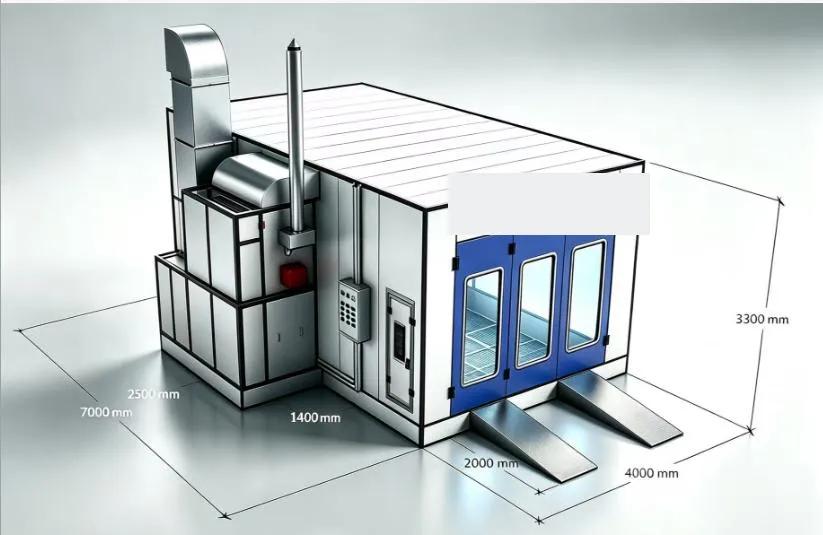

Spray Baking Booth — Model X-5800
7.0×4.0×3.3m spray baking booth, ≥15,000 m³/h airflow, 60–80°C bake, electric/diesel/gas heating options.
$18,762.64· each
XSB-6800

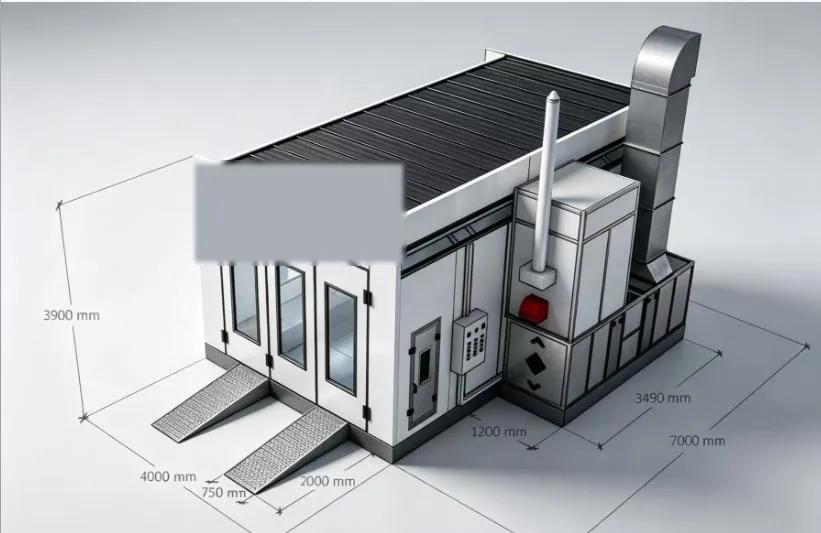

European-Style Spray Baking Booth — Model X-6800
7.0×4.0×3.5m European-style booth, ≥26,000 m³/h turbine airflow, waist lighting, 60–80°C bake.
$22,930.94· each
XSB-8800

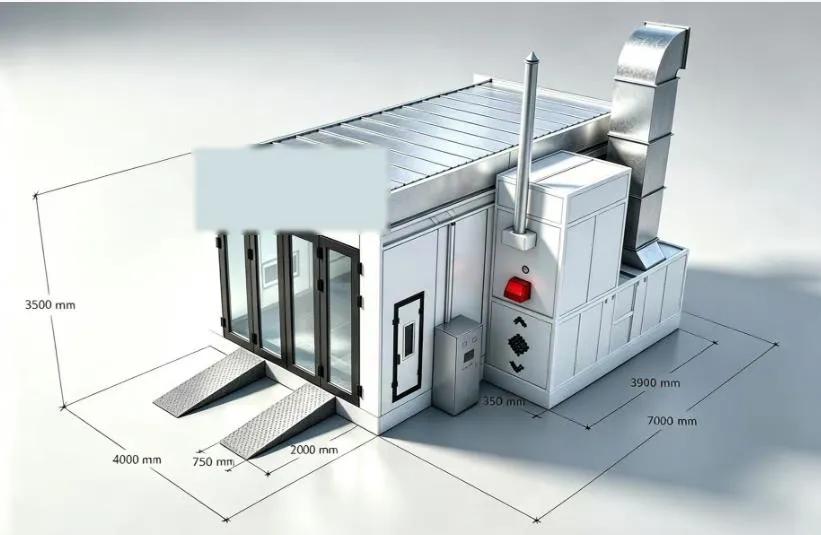

European-Style Spray Baking Booth — Model X-8800
