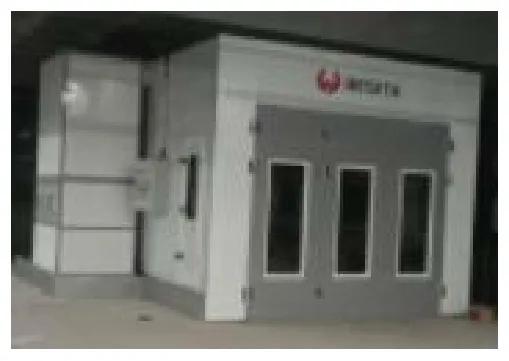

Paint Room
- SKU
- CW-B0605-BS700
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Paint Room — piece of shop equipment: Wall board: 50mm sandwich panel of imported high-quality rock wool with reinforcing ribs; flame retardant, heat insulating, rigid, no deformation.
Features
- •Wall board: 50mm sandwich panel of imported high-quality rock wool with reinforcing ribs; flame retardant, heat insulating, rigid, no deformation.
- •Door: sheet metal door with square glass window.
- •Floor: seamless galvanized sheet with anti-rust galvanized frame (40x80 square tube); two lines of slit flat-iron spray floor grille and three-channel anti-slip spray flooring.
- •Air supply: two YDW4.0kw high-temperature-resistant centrifugal fans (imported Siemens technology).
- •Air purification: coarse non-woven cotton filter layer plus precision multi-layer filter cotton layer, large dust-holding capacity, low wind resistance.
- •Electronic control: lighting switch, temperature/time setting, per-group paint switches, main paint switch, emergency stop, fault alarm, over-temperature alarm, accumulated time display.
- •Air inlet equipped with anti-bird net and drawer-type windproof fan with paint-sticking device.
Description
Paint Room is a piece of shop equipment. Wall board: 50mm sandwich panel of imported high-quality rock wool with reinforcing ribs; flame retardant, heat insulating, rigid, no deformation. Door: sheet metal door with square glass window. Floor: seamless galvanized sheet with anti-rust galvanized frame (40x80 square tube); two lines of slit flat-iron spray floor grille and three-channel anti-slip spray flooring.
Specifications
| Noise | ≤80db(a) |
|---|---|
| TSP value | ≤1.4mg/m3 |
| Heating lamps | 10 sets of short-wave infrared heating lamps (4 left wall, 4 right wall, 2 rear wall), each set 3x1KW |
| Door size (W×H) | 3000×2650 mm |
| Ceiling LED lights | 32 LEDs, 8 groups of 4, illumination up to 1000LUX+ |
| Air filtration rate | 98% |
| Air supply fan volume | 26000m³/h |
| Number of air changes | 262 times/h |
| Maximum total power used | 30KW |
| Working door size (W×H) | 800×2000 mm |
| Wind speed in full load room | 0.25~0.35m/s |
| Room inner diameter size (L×W×H) | 6900×3900×2750 mm |
| House outer diameter size (L×W×H) | 7000×5150×3450 mm |
