Description

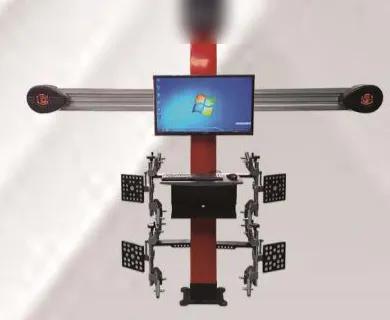

3D Wheel Alignment Machine — refer to the model number and technical parameters below. Model: S5.
Specifications
| scope | ±40° to ±50° depending on measurement; wheel base 1219-2438mm and 2006-4572mm |
|---|---|
| modelNo | S5 |
| accuracy | Total anterior tract ±0.01°, inclination ±0.01°, back dip ±0.02°, interior ±0.02°, thrust ±0.01°, retreat ±0.01°, steering ±0.02° |
| beamType | Fixed beam |
| monitorCount | 1 |
