L0109 PRO3 V+ ELITE
- SKU
- CW-L0109
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

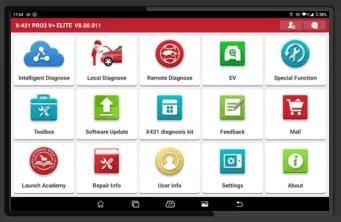

L0109 PRO3 V+ ELITE — diagnostic tool: Developed on Android 10.0 with major hardware/software upgrades.
Features
- •Developed on Android 10.0 with major hardware/software upgrades
- •Second-generation connector supports local and advanced remote diagnostics at OEM level
- •Supports CAN 2.0, CANFD, DoIP and J2534 diagnostic communication standard
- •Expandable into commercial vehicle or new energy vehicle diagnostic equipment
- •4GB RAM + 64GB ROM, strong system stability and compatibility
- •10.1-inch large screen, clear and readable under sunlight
- •Series battery with doubled power: 6300mAh @ 7.6V, ultra-long endurance
- •New TYPE A interface; connects to oscilloscope, sensors, anti-theft programmers and other expansion tools
- •Four-corner anti-collision design, rotatable bracket for support/hanging, anti-dust and ash resistant
- •Super remote + local diagnosis
- •Full vehicle model, full system coverage
- •Special functions and original factory-level diagnosis
Description
L0109 PRO3 V+ ELITE is a diagnostic tool. Developed on Android 10.0 with major hardware/software upgrades. Second-generation connector supports local and advanced remote diagnostics at OEM level. Supports CAN 2.0, CANFD, DoIP and J2534 diagnostic communication standard.
Specifications
| WiFi | 2.4GHz/5GHz (Dual-band) |
|---|---|
| Camera | Rear 8MP |
| Memory | 4GB |
| Battery | 47.880Wh (7.6V, 6300mAh) |
| Display | 10.1 inches, 1280*800 |
| Storage | 64GB |
| Interface | TYPE A *1 & TYPE C *1 |
| Processor | 2.0GHz Quad-core |
| Dimensions | 274*190.5*40.5mm (printed as "274190.540.5mm") |
| VCI Memory | 256M |
| VCI Display | 3.97-inch TFT screen |
| VCI Storage | 8GB |
| VCI Dimensions | 200mm*110mm*47mm |
| VCI Resolution | 320*480 |
| Operating System | Android 10.0 |
| Operating Temperature | 0~50°C |
| VCI Operating Voltage | DC 9~36V |
| VCI Power Consumption | <6W |
| VCI Local Diagnostic Mode | Bluetooth/Wired |
| VCI Operating Temperature | -10~50°C |
| VCI Remote Diagnostic Mode | Ethernet |
