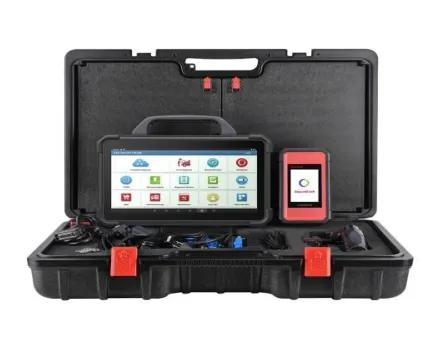

L0107 PAD7 ELITE (ECU) 13.3-inch screen
- SKU
- CW-L0107
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
L0107 PAD7 ELITE (ECU) 13.3-inch screen — diagnostic tool: Full system vehicle coverage for U.S., Asian and European markets, over 110 brands, continually updated.
Features
- •Full system vehicle coverage for U.S., Asian and European markets, over 110 brands, continually updated
- •Upgradeable/expandable with more software and service via an add-on module ('MALL')
- •Real-time voltage display to monitor vehicle voltage during diagnosis
- •Topology mapping gives visual checking on DTCs and system communication status
- •Supports CAN/CANFD/DoIP and communication standards J2534/D-PDU/RP1210
- •Auto-detects vehicle communication protocol and checks OBDII port pin damage
- •Intelligent diagnostic VIN auto-identification for quick system access
- •Guided function for VW and Audi
- •Optional ADAS calibration function
- •Advanced coding and programming function
- •Extended solution to support TPMS service
- •2.4GHz & 5GHz dual band communication for quick, stable connection
Description
L0107 PAD7 ELITE (ECU) 13.3-inch screen is a diagnostic tool. Full system vehicle coverage for U.S., Asian and European markets, over 110 brands, continually updated. Upgradeable/expandable with more software and service via an add-on module ('MALL'). Real-time voltage display to monitor vehicle voltage during diagnosis.
Specifications
| CPU | 2.0GHz Octa-core |
|---|---|
| WiFi | Dual Band 2.4 & 5GHz |
| Camera | Rear 13MP, Front 8MP |
| Memory | 8GB |
| Weight | 13kg |
| Display | 13.3" touch screen |
| Package | 68x21x48cm |
| Storage | 256GB |
| VCI WiFi | Dual Band 2.4 & 5GHz |
| Dimension | 353*236*71 mm |
| VCI Memory | 256M |
| VCI Display | 3.5-inch touch screen, 320*480 |
| VCI Storage | 8GB |
| Communication | WiFi |
| VCI Dimension | 204*110*45 mm |
| VCI Work Temp | 0℃~50℃ |
| Operation System | Android 9.0 |
| Service Functions | 39 functions (same reset/service function set as PAD5 ELITE — see page 7) |
| Working Temperature | 0℃~50℃ |
| VCI Diagnostic Communication | WiFi & BT & USB |
