L0102 PAD5 ELITE
- SKU
- CW-L0102
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

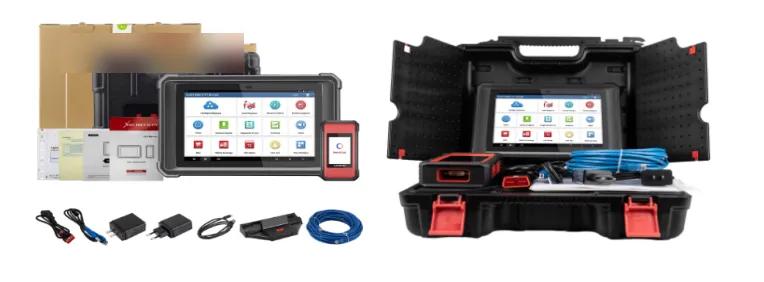

L0102 PAD5 ELITE — diagnostic tool: Full vehicle system coverage for over 110 brands worldwide, continually updated.
Features
- •Full vehicle system coverage for over 110 brands worldwide, continually updated
- •Full-function scan tool for both cars and trucks
- •Supports J2534, DoIP, CAN FD and other protocols with a dedicated connector
- •Automatically identifies VIN upon vehicle connection for intelligent diagnosis
- •Remote diagnosis allows working on a vehicle without being on-site
- •Reads all DTC types for full system, view/graph/record data PIDs, bi-directional controls, actuation test and other diagnostic functions
- •Guided function for Volkswagen and Audi
- •Advanced coding and programming function
- •Optional ADAS calibration function
- •One-click upgrade and silent install for software
- •Diagnostic records and reports stored in the cloud
- •Integrated database with vehicle service and repair information
Description
L0102 PAD5 ELITE is a diagnostic tool. Full vehicle system coverage for over 110 brands worldwide, continually updated. Full-function scan tool for both cars and trucks. Supports J2534, DoIP, CAN FD and other protocols with a dedicated connector.
Specifications
| CPU | 2.0GHz, Octa-core |
|---|---|
| Camera | Rear 13MP, Front 8MP |
| Memory | 4GB |
| Battery | 9360 mAh |
| Display | 10.1", 1920*1200 |
| Storage | 128GB |
| VCI WiFi | Dual Band 2.4 & 5GHz |
| Dimension | 320*211*46 mm |
| Interface | TYPE A*1 & TYPE C*1 |
| VCI Memory | 256M |
| VCI Display | 3.5-inch screen, 320*480 |
| VCI Storage | 8GB |
| VCI Dimension | 204*110*45 mm |
| VCI Work Temp | 0℃~50℃ |
| VCI Connection | 2.4GHz/5GHz dual WiFi |
| Operation System | Android 7.1 (open system) |
| Service Functions | 39 functions including Brake Reset, Oil Maintenance Reset, Steering Angle Matching, Battery Matching, ABS Bleeding, Electric Throttle Relearn, TPMS Reset Database, DPF Regen, AC System Relearn/Initialization, Adaptive Front Lighting, AdBlue Reset, Air/Fuel Reset, Air Level Calibration, Coolant Bleed, Crank Position Sensor Adaptive Learning, EGR Adaption, Engine Power Balance Monitoring, Gas Particulate Filter Regeneration, Gearbox Relearn, High-Voltage Battery Diagnostics, Immo Program, Immobilizer Coding, Intelligent Cruise Control System, Language Change, Motor Angle Calibration, Nox Sensor Reset, Seat Occupants Calibration, Stop/Start Reset, Sunroof Reset, Tire Reset, Transport Mode, Windows Calibration, Clutch Matching, Turbocharging Matching, Fm Matching, Gateway Module Data Calibration, ECU Reset, Rainfall Light Sensor |
| VCI Diagnostic Communication | WiFi & BT & USB |
