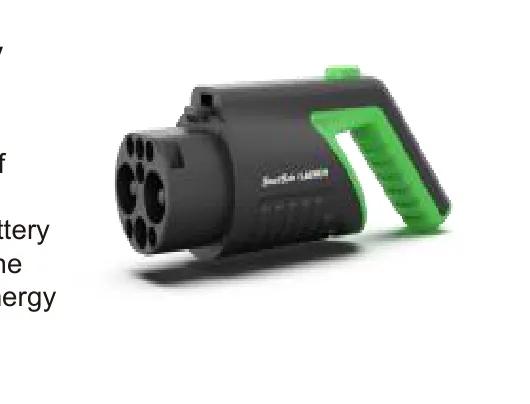

FC01 New energy vehicle battery pack inspection gun
- SKU
- CW-S0311
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
FC01 New energy vehicle battery pack inspection gun — diagnostic tool: Quickly reads BMS status and version information such as battery pack SOC, total voltage, maximum single cell voltage, average.
Features
- •Quickly reads BMS status and version information such as battery pack SOC, total voltage, maximum single cell voltage, average battery pack temperature, and rated capacity, to help quickly determine battery pack failures
- •Uses Bluetooth communication, supports independent use of WeChat applet, and can also be used with P01/P03
- •WeChat applet displays the detection process in real time, allows viewing of battery pack detection data, and generates/shares battery pack detection reports and user detection files
- •Software developed in accordance with the national standard GB/T27930 protocol; suitable for domestic vehicles that meet the national standard fast charging
Description
FC01 New energy vehicle battery pack inspection gun is a diagnostic tool. Quickly reads BMS status and version information such as battery pack SOC, total voltage, maximum single cell voltage, average battery pack temperature, and rated capacity, to help quickly determine battery pack failures. Uses Bluetooth communication, supports independent use of WeChat applet, and can also be used with P01/P03. WeChat applet displays the detection process in real time, allows viewing of battery pack detection data, and generates/shares battery pack detection reports and user detection files.
Specifications
| CPU | Cortex-M4 |
|---|---|
| Size | 327×104×137mm |
| Input voltage | 5V⎓1A |
| Battery capacity | 2200mAh |
| Working distance | 10m |
| Charging interface | USB Type C |
| Storage temperature | -20~70°C |
| Working temperature | -10~45°C |
| Communication method | Bluetooth |
