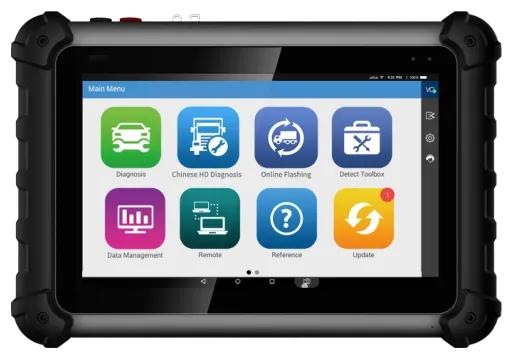

F0001 ZD800MAX Diesel Heavy-Duty Diagnostic Scanner
- SKU
- CW-F0001
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
F0001 ZD800MAX Diesel Heavy-Duty Diagnostic Scanner — diagnostic tool: Diesel vehicle (heavy duty) diagnostic scanner.
Features
- •Diesel vehicle (heavy duty) diagnostic scanner
- •Full-system full-function diagnostics supporting 100+ diesel vehicles abroad
- •Supports printing and sharing of diagnostic results
- •Full-function VCI connector supporting CAN FD and DoIP protocols
- •Covers dozens of special features: reflash programming, post-processing, DPF, etc.
- •Standard oscilloscope, multimeter and other toolbox functions
- •Software supports three languages
- •Automotive diagnostics: domestic commercial vehicle diagnostics
- •Commercial vehicle diagnostics: hundreds of overseas diesel vehicle diagnostics supported
- •Toolbox: oscilloscope and multimeter functions
- •Data management: historical data flow, save/print diagnostic reports
- •Built-in reference guide for troubleshooting during diagnosis
Description
F0001 ZD800MAX Diesel Heavy-Duty Diagnostic Scanner is a diagnostic tool. Diesel vehicle (heavy duty) diagnostic scanner. Full-system full-function diagnostics supporting 100+ diesel vehicles abroad. Supports printing and sharing of diagnostic results.
Specifications
| Battery | 10000mAh |
|---|---|
| VCI CPU | 32-bit RISC-V |
| VCI RAM | 800KB |
| VCI USB | Type-C, USB2.0 |
| VCI WiFi | 2.4GHz |
| VCI Flash | 8MB |
| VCI Model | FV500 |
| Multimeter | Integrated |
| VCI 24V CAN | Supported |
| Oscilloscope | Dual channel, integrated |
| VCI Bluetooth | BT4.2 (BLE) |
| VCI Serial Port | RS232/RS485 |
| Operating System | Android 5.1/11 (as printed) |
| Hardware Platform | F7 Pad |
| VCI Hardware Support | CAN, SWCAN, CAN-FD, K/L-Line, VPW/PWM, Ethernet, UART/RS232/RS485 |
| VCI Protocol Support | SAE J1939, SAE J1979, SAE J1708/J1587, SAE J1850 (VPW/PWM), SAE J2284 (125/250/500 kbps), SAE J2411 (GM single-wire CAN), ISO 15765, ISO 14229 (UDS), ISO 14230 (KWP 2K), ISO 9141-2, ISO 11898-1 (CAN-FD), ISO 11898-3 (fault-tolerant CAN), ISO 13400 (DoIP), ISO 27145 |
| VCI Brush-Free Support | Bosch IV, V, VI free brush |
| VCI Processor Frequency | 648MHz |
