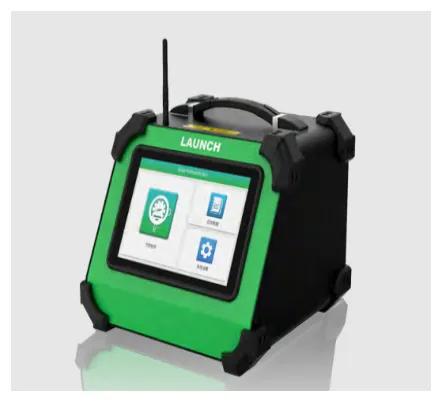

EVT501 Battery Pack Module Charge-Discharge All-in-One Machine
- SKU
- CW-L0206
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
EVT501 Battery Pack Module Charge-Discharge All-in-One Machine — piece of shop equipment: Pressure gauge dial displays process pressure curve in real time.
Features
- •Pressure gauge dial displays process pressure curve in real time
- •Presets battery pack parameters: volume, pressure, test time per stage, leakage limit
- •High-sensitivity pressure sensing for accuracy and stability
- •Air tightness detection via high-sensitivity sensors
- •Parameter setting: workpiece number, volume, pressure, stage time, leakage limit
- •Real-time leakage display
- •Detection history automatically saved with curve chart
- •Process visualization: inflation, pressure stabilization, leakage, exhaust stages
Description
EVT501 Battery Pack Module Charge-Discharge All-in-One Machine is a piece of shop equipment. Pressure gauge dial displays process pressure curve in real time. Presets battery pack parameters: volume, pressure, test time per stage, leakage limit. High-sensitivity pressure sensing for accuracy and stability.
Specifications
| Power | 20W Max |
|---|---|
| Display | 10.1-inch LCD screen |
| Interface | RS485/USB |
| Dimensions | 349x329x366.5 mm |
| Test Accuracy | ±5pa |
| Sensor Resolution | 1pa |
| Test Pressure Range | 0~30Kpa |
| Working Power Supply | AC220V 50Hz |
| Operating Temperature | -10~55°C |
| Air Source Requirements | 0.1~1.0 Mpa dry compressed air |
| Intake Interface/Test Interface | Φ6mm air pipe / Φ6mm air pipe |
