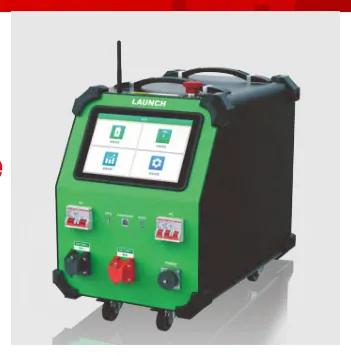

EVP701 Battery Pack Module Charge-Discharge All-in-One Machine
- SKU
- CW-L0210
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
EVP701 Battery Pack Module Charge-Discharge All-in-One Machine — piece of shop equipment: Supports charging/discharging maintenance for mainstream lithium and Ni-MH batteries.
Features
- •Supports charging/discharging maintenance for mainstream lithium and Ni-MH batteries
- •Advanced testing technology avoids interference with BMS systems
- •Wide-voltage design with multiple charge/discharge modes for safety and efficiency
- •Protection mechanisms: overcharge/overdischarge, overvoltage/overcurrent/over-temperature, battery short circuit/reverse connection, power cord/main cable power failure, fan malfunction
Description
EVP701 Battery Pack Module Charge-Discharge All-in-One Machine is a piece of shop equipment. Supports charging/discharging maintenance for mainstream lithium and Ni-MH batteries. Advanced testing technology avoids interference with BMS systems. Wide-voltage design with multiple charge/discharge modes for safety and efficiency.
Specifications
| Display | 10.1-inch LCD screen |
|---|---|
| Dimensions | 349.0x551.1x598.5 mm |
| Power Input | AC 220V, 50Hz |
| Charging Mode | Constant Current (CC) + Constant Voltage (CV) Charging |
| Discharging Mode | Constant Current (CC) Discharging |
| Data Communication | RS485 |
| Test Current Accuracy | ±(1%FS + 0.2A), Resolution 0.1A |
| Charging Current Range | Max Current 100A, Max Power 4.4kW |
| Discharging Current Range | Max Current 100A, Max Power 7.2kW |
| Single Cell Voltage Accuracy | ±(0.1%FS + 5mV), Resolution 0.001V |
| Charge/Discharge Voltage Range | DC 2~400V |
| Group Terminal Voltage Accuracy | ±(0.5%FS + 0.3V), Resolution 0.001V |
