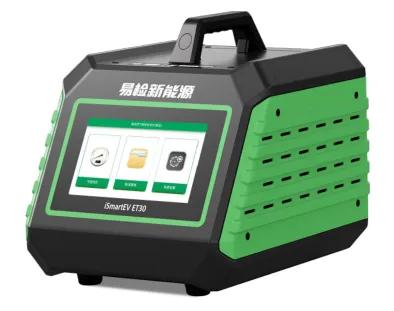

ET30 New energy vehicle battery pack air tightness tester (low voltage)
- SKU
- CW-S010010
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
ET30 New energy vehicle battery pack air tightness tester (low voltage) — diagnostic tool: High sensitivity: high-sensitivity pressure sensing improves test accuracy and stability.
Features
- •High sensitivity: high-sensitivity pressure sensing improves test accuracy and stability
- •Process visualization: test process displays progress time of each stage
- •Dual display of pressure value: real-time pressure dial and process pressure curve display
- •Parameter management: standard parts project test parameters can be preset and directly called for use
- •Parameter setting: workpiece number, volume, pressure, time of each stage, and leakage limit can be preset
- •Intelligent alarm: audible and visual alarm on abnormal or failed test
Description
ET30 New energy vehicle battery pack air tightness tester (low voltage) is a diagnostic tool. High sensitivity: high-sensitivity pressure sensing improves test accuracy and stability. Process visualization: test process displays progress time of each stage. Dual display of pressure value: real-time pressure dial and process pressure curve display.
Specifications
| Power | 20W Max |
|---|---|
| Power Input | AC90~264V/40~60Hz |
| Test Accuracy | ±5pa |
| Working Humidity | 10%~90% |
| Sensor Resolution | 1pa |
| Test Pressure Range | 0~30Kpa |
| Working Temperature | -10~55°C |
| Air Source Requirements | 0.1~1.0MPa Dry Compressed Air |
| Communication Interface | RS232/USB |
| Air Inlet/Test Interface | φ6mm air pipe |
