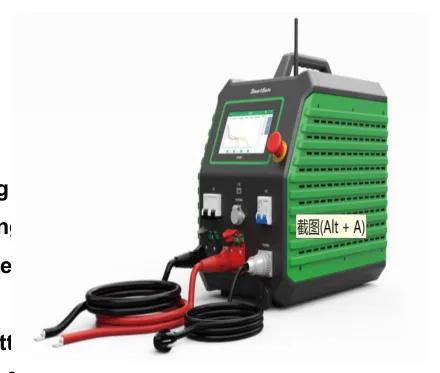

EP401 New energy vehicle battery pack module charging and discharging integrated machine
- SKU
- CW-S010007
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
EP401 New energy vehicle battery pack module charging and discharging integrated machine — piece of shop equipment: Supports charging and discharging maintenance of various lithium batteries and.
Features
- •Supports charging and discharging maintenance of various lithium batteries and nickel-metal hydride batteries
- •Supports SOC/SOH evaluation of battery health status
- •Adopts advanced charging and discharging test technology to avoid interference with the BMS system
- •Wide voltage design with built-in multiple charging and discharging modes to meet requirements of various battery pack modules
- •Charging/discharging rules and activation times can be freely set to increase battery capacity
- •Warns on reverse polarity, high temperature, short circuit overcurrent, fan failure, high voltage, and excessive current to ensure hardware safety
Description
EP401 New energy vehicle battery pack module charging and discharging integrated machine is a piece of shop equipment. Supports charging and discharging maintenance of various lithium batteries and nickel-metal hydride batteries. Supports SOC/SOH evaluation of battery health status. Adopts advanced charging and discharging test technology to avoid interference with the BMS system.
Specifications
| Display | 7-inch TFT LCD screen, resolution 1024×600 |
|---|---|
| Power input | AC90~264V/40~60Hz |
| Charge Control | Overcharge/discharge control + constant voltage charging |
| Discharge Mode | Constant current discharge |
| Host Protection | Over-temperature, over-current and out-of-control current trigger shutdown protection |
| Data Communication | CAN, RS485 |
| Abnormal Protection | Power cord power failure, main cable power failure |
| Charge Current range | Maximum current 100A, maximum power 4.4kW |
| Test Current Accuracy | ≤±1%FS+0.2A, resolution 0.1A |
| Discharge Current range | Max current 100A / max power 7.2kW |
| Single Voltage Accuracy | ≤±0.1%FS+5mV, resolution 0.001V |
| Charge/Discharge Protection | Overcharge and over-discharge protection, over-high temperature protection |
| Over-temperature Protection | Resistance box over-temperature is 85°C; radiator over-temperature is 100°C |
| Reverse Polarity Protection | Supported |
| Group Terminal Voltage Accuracy | ≤±0.5%FS+0.3V, resolution 0.1V |
| Charge and Discharge Voltage Range | DC 2~420V |
