ELA400 Intelligent Digital Power Supply
- SKU
- CW-L0207
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

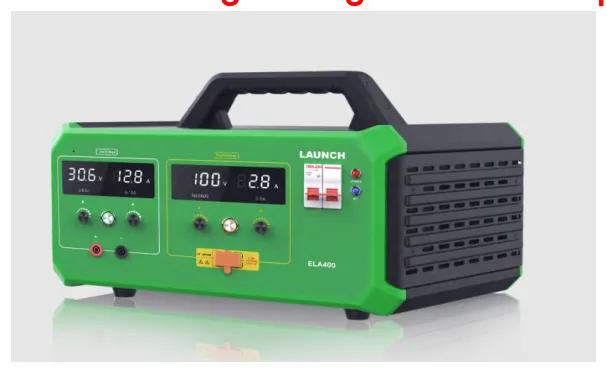

ELA400 Intelligent Digital Power Supply — piece of shop equipment: Low voltage output 0-50V, 0-15A DC, adjustable via knobs.
Features
- •Low voltage output 0-50V, 0-15A DC, adjustable via knobs
- •High voltage output 50-900V, 0-5A DC with current limiting and short-circuit protection
- •Multiple protection mechanisms for input, high-voltage output, and low-voltage output circuits (undervoltage, overvoltage, overcurrent, short circuit)
- •Front panel (high voltage section): voltage adjustment knob, current adjustment knob, high voltage switch button
- •Front panel (low voltage section): current adjustment knob, voltage adjustment knob, low voltage start/stop button
Description
ELA400 Intelligent Digital Power Supply is a piece of shop equipment. Low voltage output 0-50V, 0-15A DC, adjustable via knobs. High voltage output 50-900V, 0-5A DC with current limiting and short-circuit protection. Multiple protection mechanisms for input, high-voltage output, and low-voltage output circuits (undervoltage, overvoltage, overcurrent, short circuit).
Specifications
| Power Input | AC100-240V@20A |
|---|---|
| Maximum Power | 4000W Max |
| Display Method | LED digital tube |
| Product Weight | 11kg |
| Low Voltage Output | Voltage 0~50V, Current 0~15A |
| Product Dimensions | 395x315x265 mm |
| High Voltage Output | Voltage 50~900V, Current 0~5A |
| Communication Method | Bluetooth |
| Operating Temperature | -10~65°C |
