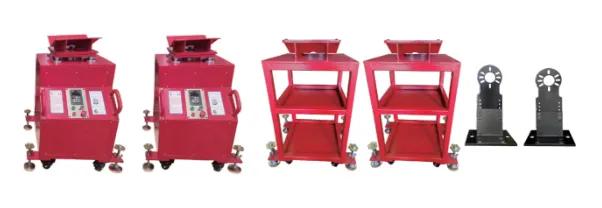

DL-4.5YYJ Chassis Road Simulator
- SKU
- CW-D0101
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
DL-4.5YYJ Chassis Road Simulator — piece of shop equipment: High-performance device for simulating road conditions on vehicle chassis, driven by a multi-frequency high-torque motor with 4500kg.
Features
- •High-performance device for simulating road conditions on vehicle chassis, driven by a multi-frequency high-torque motor with 4500kg lifting capacity.
- •Head rotation design for convenient detection; simulates different bumpy road surfaces via a microcrystal regulator for precise detection.
- •Safety features include an emergency stop button and safety leakage protection.
- •Operating panel uses a low-voltage 24V design to avoid high-voltage hazards.
Description
DL-4.5YYJ Chassis Road Simulator is a piece of shop equipment. High-performance device for simulating road conditions on vehicle chassis, driven by a multi-frequency high-torque motor with 4500kg lifting capacity. Head rotation design for convenient detection; simulates different bumpy road surfaces via a microcrystal regulator for precise detection. Safety features include an emergency stop button and safety leakage protection.
Specifications
| Colour | Customized |
|---|---|
| Motor power | 3kw |
| Control mode | Microcrystal regulator |
| Gross weight | 820kg |
| Certification | IOS9001 / CE |
| Working voltage | 380V/220V |
| Lifting capacity | 4500kg |
| Work temperature | -30° to +50° |
| Working frequency | 460 times/minute |
| Maxi. Lifting height | 1100mm |
| Equipment configuration | Two main workers, two support frames, two stress releases |
| Main worker packing size | 830*830*1130mm |
| Support frame packing size | 830*600*1130mm |
