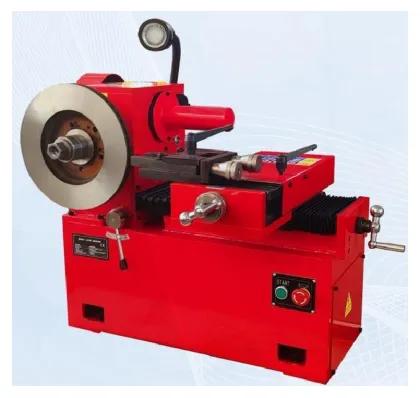

C9335A Brake Drum/Disc Machine
- SKU
- CW-SY0101
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
C9335A Brake Drum/Disc Machine — piece of shop equipment: Powerful 1.1kw AC motor for stable performance.
Features
- •Powerful 1.1kw AC motor for stable performance
- •Two selectable rotation speeds
- •Lighting device for a well-lit working area
- •Handwheels for longitudinal and transverse movements equipped with scales
- •Limit switches for automatic stop when travel limit is exceeded
- •High-quality electrical components
Description
C9335A Brake Drum/Disc Machine is a piece of shop equipment. Powerful 1.1kw AC motor for stable performance. Two selectable rotation speeds. Lighting device for a well-lit working area.
Specifications
| Weight | 260KG |
|---|---|
| Precision | <=0.02mm |
| Dimensions | 1010x950x1150mm |
| Motor Speed | 75, 130RPM |
| Cutting Speed | 0.0 - 0.66mm |
| Motor Voltage | 110v/220v/380v |
| Motor Frequency | 50Hz/60Hz |
| Brake Drum Depth | 3.94" (100mm) |
| Brake Disc Diameter Range | 7" - 16.53" (180 - 420mm) |
| Brake Drum Diameter Range | 7" - 13.78" (152 - 350mm) |
| Maximum Brake Disc Thickness | 1.875" (48mm) |
