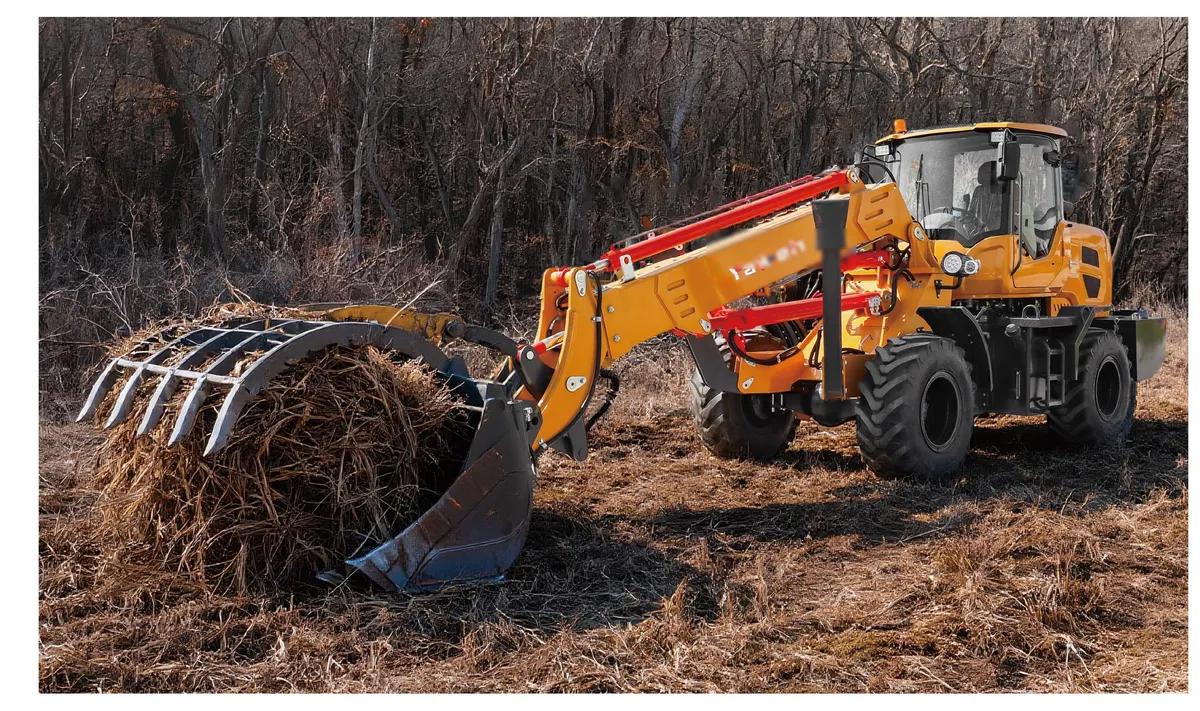

Telescopic Loader — T3500
- SKU
- HE-T3500
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Features
- •Solenoid-controlled single joystick / combo joystick for one-touch synchronized operation
- •Embedded hydraulics eliminate exposed tubing damage
- •11m telescopic arm with front outriggers for stability
- •Self-leveling front bucket floating system
- •High-strength manganese steel boom
- •Stamped cab frame for sealing and low noise, with aviation shock seats
Description
A solenoid-controlled single joystick needs little readjustment, and a combo joystick enables one-touch synchronized operation. Exclusive embedded hydraulics eliminate exposed tubing, protecting circuits from damage, while the 11m telescopic arm and front outriggers boost stability and safety. The front bucket features a floating system that automatically levels itself with the ground for excellent leveling performance. A high-strength manganese steel boom delivers superior toughness and wear resistance for reliable safety and performance. The integrally stamped cab frame provides tight sealing and low noise, with a spacious, wide-view cab and aviation shock seats for comfort.
Specifications
| Axle | 28-Inch Axle |
|---|---|
| Power(kw) | 92 |
| Tire Type | 17.5-25 |
| Engine Type | 6105 turbocharged diesel |
| Wheel Base(mm) | 2920 |
| Outline(mm) 11m | 8800*2200*2980 |
| Wheel Tread(mm) | 2100 |
| Bucket Width(mm) | 2300 |
| Max.Capacity(kg) | 3500 |
| Outline(mm) 7/9m | 7350*2100*2980 |
| Operating Weight(kg) | 8000/8300/9900 |
| Max Lifting Height(mm) | 7000/9000/11000 |
| Max.Travel Speed(km/h) | 35 |
| Min.Turning Radius(mm) | 5750 |
| Max.Unloading Height(mm) | 4900/6900/9000 |
| Min. Ground Clearance(mm) | 450 |
