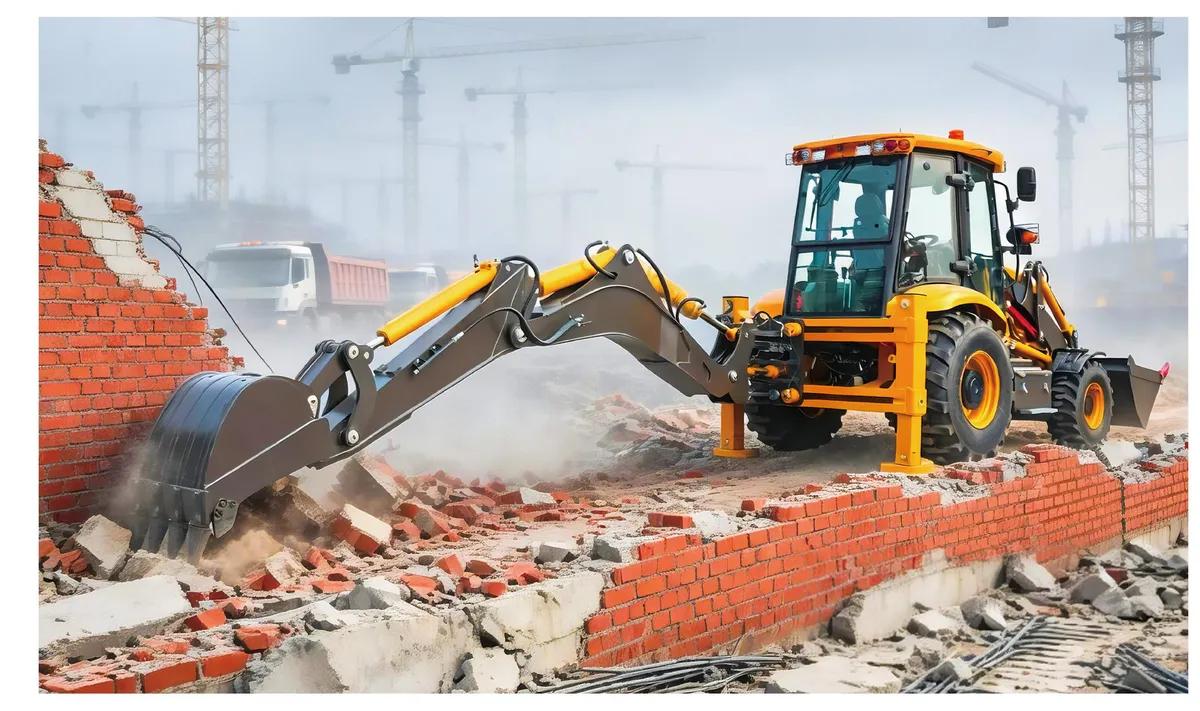

Regular Backhoe Loader — YW388
- SKU
- HE-YW388
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Features
- •Mechanical powershift transmission with F4/R4 gears and YJ280 torque converter, max speed up to 35 km/h
- •Full-time 4WD with heavy-duty reinforced axles for tough conditions
- •Load-sensing hydraulic system matches pressure and flow to load demand
- •Compact 2290mm wheelbase / 1950mm tread for tight-space agility
- •Hydraulic hoses rated to 40MPa
- •Rubber components rated -40C to +80C
Description
Latest technology and advanced design deliver low fuel consumption, reduced noise, high torque and power output, total reliability and low maintenance. A mechanical powershift transmission with F4 & R4 gears is mated to a YJ280 torque converter for a max speed of 35 km/h, with full-time 4WD. High-strength reinforced axles with thick housing and hardened gears provide excellent shock resistance for tough working conditions, and the load-sensing hydraulic system automatically matches pressure and flow to actual load demands. A 2290mm wheelbase and 1950mm tread deliver outstanding agility and gradeability in tight-space job sites, with hydraulic hoses rated to 40MPa and rubber parts resistant to cracking from -40C to +80C.
Specifications
| Engine | 4105 turbocharged diesel |
|---|---|
| Axle Type | Heavy-Duty Axle |
| Gear Mode | F4R4 |
| Power(kw) | 85 |
| Transmission | Mechanical Transmission |
| Dimension(mm) | 6150*2350*3700 |
| Intake Method | Turbocharge |
| Operation Type | Electro-Hydraulic Pilot Control |
| Hydraulic System | Load-Sensing System |
| Max.Velocity(km/h) | 35 |
| Operation Weight(kg) | 7400/8400 |
| Max.Digging Depth(mm) | 4000/5200 |
| Max.Unloading Height(mm) | 2742 |
| Loader Bucket Volume(cbm) | 1.0 |
| Excavator Bucket Height(cbm) | 0.3 |
