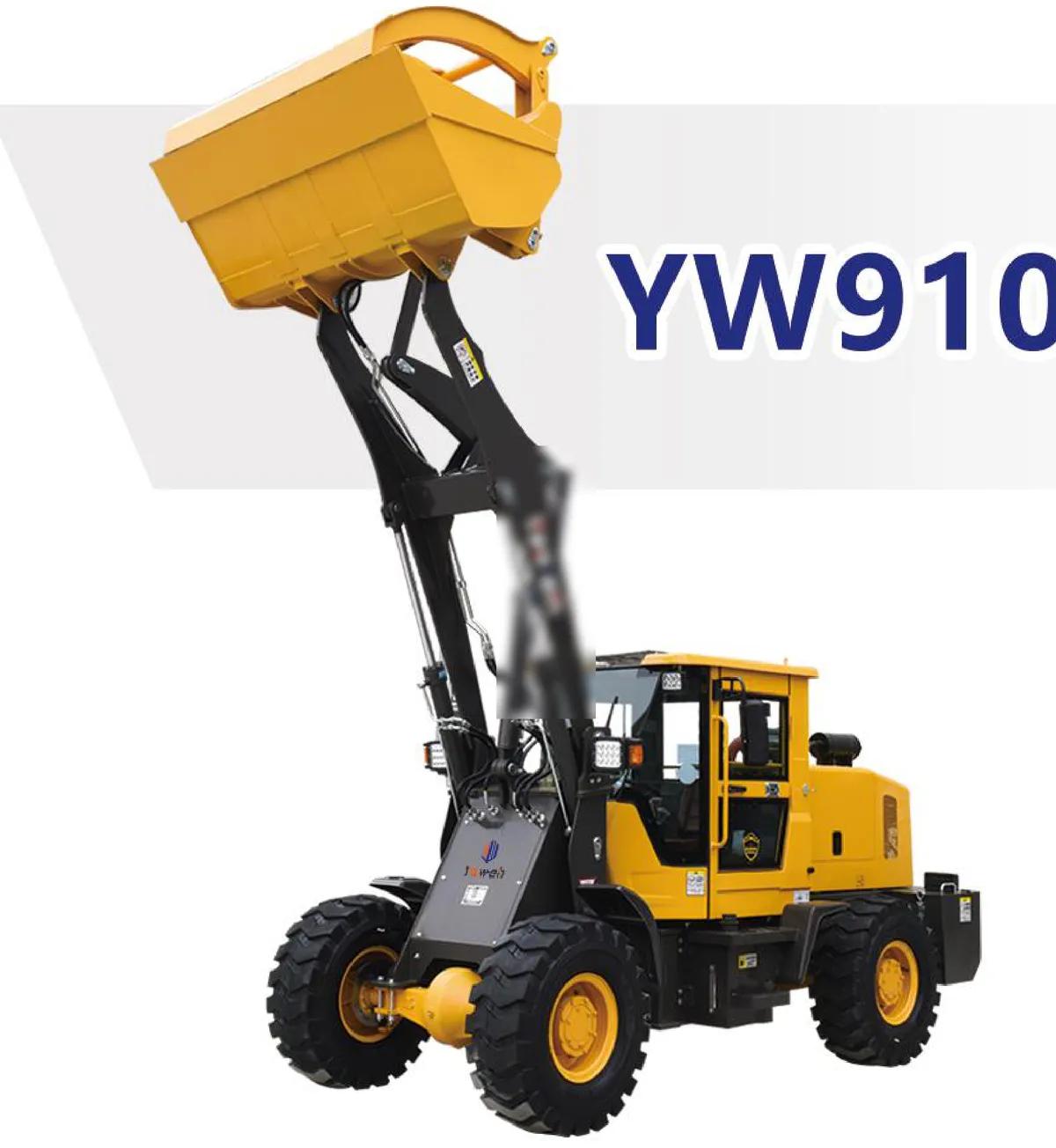

Mini Loader — YW910
- SKU
- HE-YW910
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Features
- •Integrated cast-steel drive axles with heavy-duty planetary reduction hubs
- •Q345 high-manganese alloy steel boom, chassis and bucket with double-layer thickened bucket plates
- •Short articulated frame with large steering angle for small turning radius
- •Finite-element-optimized chassis for even stress distribution
- •Sealed engine cover resists collision damage
- •Reinforced cabin shell with oversized panoramic windows, no blind spots
- •Four-wheel caliper disc brakes for stable braking and safe parking on slopes
- •Upgraded heat dissipation system for reliable all-weather operation
Description
Integrated cast-steel drive axles and heavy-duty planetary reduction hubs resist gear damage under heavy loads. The boom, chassis and bucket are built from Q345 high-manganese alloy steel with double-layer thickened bucket plates for added strength. A short articulated frame with a large steering angle enables a small turning radius, ideal for tight spaces such as farms, indoor warehouses and confined construction areas. A finite-element-optimized chassis ensures even stress distribution, and the integrated sealed engine cover resists collision damage. A reinforced cabin shell (1.4mm plate + 5mm base plate) with oversized panoramic windows eliminates blind spots for enhanced operational safety.
Specifications
| Drive Axle | Small Middle Rim |
|---|---|
| Engine Brand | 490 diesel |
| Wheelbase(mm) | 2585 |
| Track Width(mm) | 1430 |
| Bucket Width(mm) | 1850 |
| Dump Clearance(mm) | 3160 |
| Tire Specification | 20.5-16 |
| Bucket Capacity(cbm) | 0.8 |
| Operating Weight(kg) | 3248 |
| Overall Dimension(mm) | 5950x1850x2150 |
| Max Travel Speed(km/h) | 22.58 |
| Rated Engine Power(kw) | 36.8/76/55 |
| Rated Load Capacity(kg) | 950 |
| Min. Ground Clearance(mm) | 240 |
