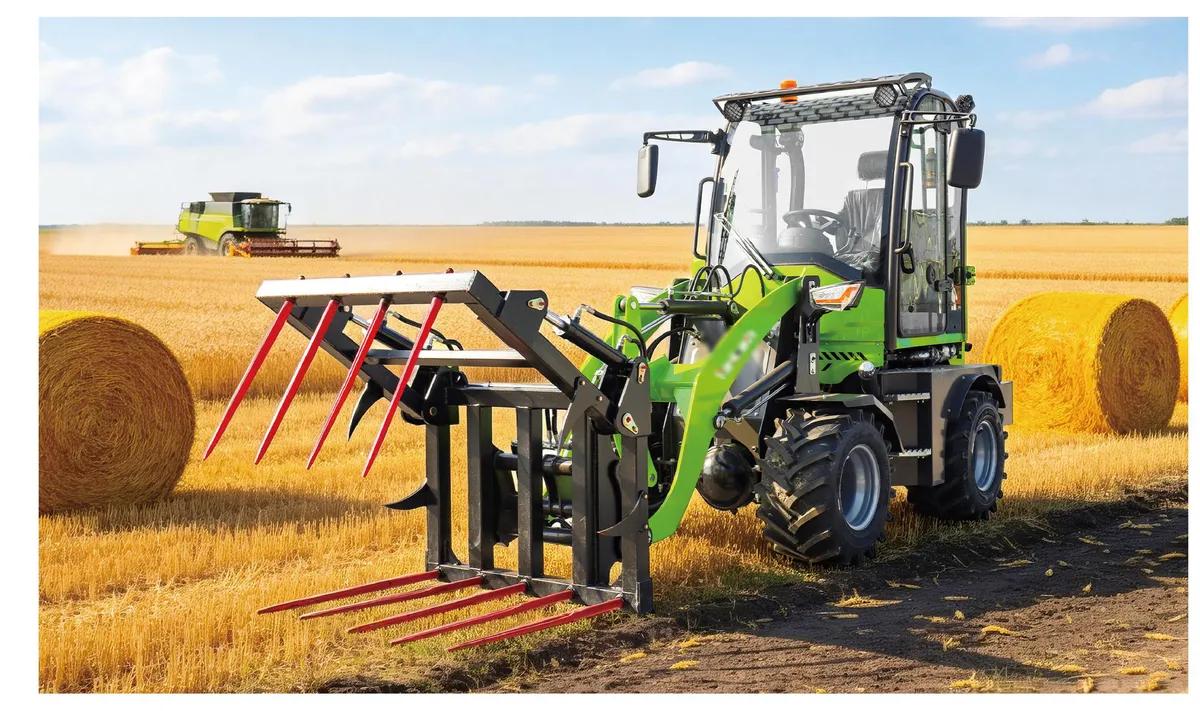

Mini Loader — YW10
- SKU
- HE-YW10
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Features
- •Anti-falling-object protection net over the cab
- •Spacious, dust-proof, noise-reducing cab
- •Full-enclosed tire guards reduce body abrasion
- •Separate heater/AC compartment with superior heating
- •Reinforced 'S' bend boom section for higher load capacity
- •Flip-up seat for easy maintenance access
Description
A wide-area anti-falling-object protection net on top of the driver's cab ensures high safety, and the well-arranged, spacious cab is dust-proof, noise-reducing and highly comfortable. Full-enclosed guards fitted on tires at both sides of the machine effectively reduce body abrasion. The heater and air conditioner are housed in a separate compartment on the right of the cab for superior heating performance. The thickness of the 'S' bend part of the main boom has been increased to enhance its ability to withstand loads, and the seat can be fully flipped up for convenient maintenance.
Specifications
| Tyre | 12-16.5 |
|---|---|
| Engine | YN25GB |
| Power(kw) | 37 |
| Outline(mm) | 4070x1620x2600 |
| Capacity(cbm) | 0.6 |
| Wheel Base(mm) | 1600 |
| Max Speed(km/h) | 25 |
| Wheel Tread(mm) | 1120 |
| Bucket Width(mm) | 1580 |
| Machine Weight(kg) | 2530 |
| Rated Speed(r/min) | 2400 |
| System Pressure(Mpa) | 18 |
| Max.Load Capacity(kg) | 800 |
| Max.Lifting Height(mm) | 3300 |
| Min.Turning Radius(mm) | 2600 |
| Max.Unloading Height(mm) | 2400 |
| Min Ground Clearance(mm) | 220 |
| Max Climbing Capacity(cbm) | 25 |
