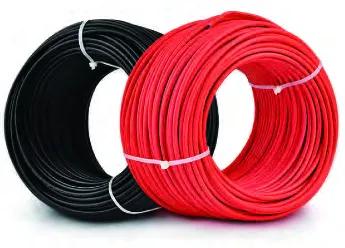

62930-IEC-131 Iec 131 Electric Cable (TÜV) For Photovoltaics System
- SKU
- WIRE-62930-IEC-131
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
Electric Cable (TÜV) For Photovoltaics System
Features
- •Approvals: TÜV Rheinland 62930 IEC 131 1×1.5mm2~35mm2 (Multiple color)
- •Rated voltage: AC U0/U=1000/1000VAC, 1500VDC
- •Finished voltage withstand test: 6.5kV AC, 15kV DC, 5min
- •Ambient temperature: -40℃ up to +90℃
- •Conductor maximum temperature: +120℃
- •Service life: >25years (-40℃ up to +90℃)
- •Reference short-circuit temperature: 200℃, 5 seconds
- •Bending radius: ≥4×φ (D<8mm), ≥6×φ (D≥8mm)
- •Compatibility test: IEC60811-401:2012, 135±2/168h
- •Acid alkali test: EN60811-2-1
- •Cold bending test: IEC60811-506
- •Damp heat teat: IEC60068-2-78
- •Sunlight resistance: IEC62930
- •O-zone resistance test of finished cable: IEC60811-403
- •Fire test: IEC60332-1-2
- •Smoke density: IEC61034, EN50268-2
- •Assessment of halogens for all non-metallic material: IEC62821-1
- •**The current-carrying capacity is under the situation of laying the single cable in air
Description
ELECTRIC CABLE (TÜV) FOR PHOTOVOLTAICS SYSTEM. Approvals: TÜV Rheinland 62930 IEC 131 1×1.5mm2~35mm2 (Multiple color). Rated voltage: AC U0/U=1000/1000VAC, 1500VDC. Finished voltage withstand test: 6.5kV AC, 15kV DC, 5min. Ambient temperature: -40℃ up to +90℃. Conductor maximum temperature: +120℃. Service life: >25years (-40℃ up to +90℃).
Specifications
| 10 | conductor Construction (no/mm): 84/0.4 · Conductor Stranded OD.max (mm): 4.56 · Cable OD. (mm): 8.00 · Max Cond Resistance (Ω/km,20℃): 1.95 · **Current carring Capacity AT 60℃ (A): 98 |
|---|---|
| 16 | conductor Construction (no/mm): 128/0.4 · Conductor Stranded OD.max (mm): 5.6 · Cable OD. (mm): 9.60 · Max Cond Resistance (Ω/km,20℃): 1.24 · **Current carring Capacity AT 60℃ (A): 132 |
| 25 | conductor Construction (no/mm): 192/0.4 · Conductor Stranded OD.max (mm): 6.95 · Cable OD. (mm): 11.40 · Max Cond Resistance (Ω/km,20℃): 0.769 · **Current carring Capacity AT 60℃ (A): 176 |
| 35 | conductor Construction (no/mm): 276/0.4 · Conductor Stranded OD.max (mm): 8.74 · Cable OD. (mm): 13.20 · Max Cond Resistance (Ω/km,20℃): 0.565 · **Current carring Capacity AT 60℃ (A): 218 |
| 1.5 | conductor Construction (no/mm): 30/0.25 · Conductor Stranded OD.max (mm): 1.58 · Cable OD. (mm): 4.90 · Max Cond Resistance (Ω/km,20℃): 13.7 · **Current carring Capacity AT 60℃ (A): 30 |
| 2.5 | conductor Construction (no/mm): 49/0.25 · Conductor Stranded OD.max (mm): 2.02 · Cable OD. (mm): 5.40 · Max Cond Resistance (Ω/km,20℃): 8.21 · **Current carring Capacity AT 60℃ (A): 41 |
| 4.0 | conductor Construction (no/mm): 56/0.285 · Conductor Stranded OD.max (mm): 2.5 · Cable OD. (mm): 6.00 · Max Cond Resistance (Ω/km,20℃): 5.09 · **Current carring Capacity AT 60℃ (A): 55 |
| 6.0 | conductor Construction (no/mm): 84/0.285 · Conductor Stranded OD.max (mm): 3.17 · Cable OD. (mm): 6.50 · Max Cond Resistance (Ω/km,20℃): 3.39 · **Current carring Capacity AT 60℃ (A): 70 |
| Standard | 62930 IEC 131 |
| Construction | Conductor: Annealed soft tin copper; Insulation: Electron-beam cross-linked material; Jacket: Electron-beam cross-linked material |
