TLT235SC
- SKU
- CW-L0504
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

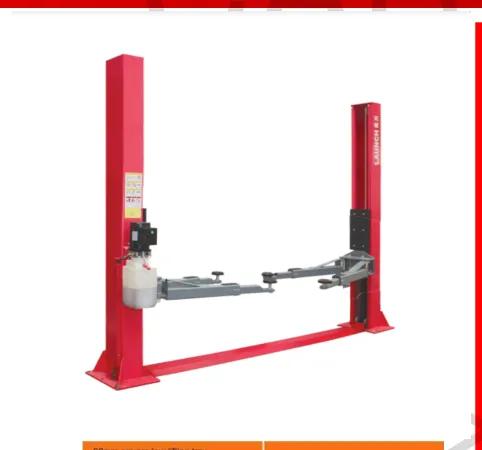

TLT235SC — vehicle lift: Bilateral manual safety unlocking system.
Features
- •Bilateral manual safety unlocking system
- •Cable and oil pipe fully concealed for a decent, elegant appearance
- •Double hydraulic cylinder and high-strength chain drive for stable, smooth lifting and lowering
- •Wire rope equalization system forces synchronous movement of two carriages, preventing vehicle tilting
- •24V low voltage control box (IP54 level) for operator safety
- •24V cylinder travel limit switch protects cylinder and extends lifespan
- •Door rubber pad protects car door from damage in collision
- •More lifting pads with different heights meet requirements for light lorries and SUVs
- •Passed 115% dynamic loading test and 150% static loading test
- •CE certificated
- •Symmetric and asymmetric installation types optional
- •Swing arm: 2-stage (800-1200)*4
Description
TLT235SC is a vehicle lift. Bilateral manual safety unlocking system. Cable and oil pipe fully concealed for a decent, elegant appearance. Double hydraulic cylinder and high-strength chain drive for stable, smooth lifting and lowering.
Specifications
| Colors | red, grey, Volkswagen blue, Hyundai blue, GM blue (Buick blue) |
|---|---|
| Warranty | 1 year |
| Rated Load | 3500kg |
| Motor Power | 2.2kw |
| Lifting Time | ≤50s |
| Lowering Time | ≥20s ≤40s |
| Motor Voltage | 3 phase/380V or Single 220V |
| Product Grade | Economical |
| Initial Height | 110mm |
| Lifting Height | 1950mm |
| Overall Height | 3840mm |
| Working Oil Pressure | 16MPa |
| Overall Width for Symmetric Installation | 3392mm |
| Passing Width for Symmetric Installation | 2424mm |
| Overall Width for Asymmetric Installation | 3544mm |
| Passing Width for Asymmetric Installation | 2378mm |
Related Products
JFL-4000A
JFL-4000A Four-Post Lift with Second Lifter — 4,000 kg
Four-post vehicle lift with secondary lifter, 4,000 kg capacity, 1,600 mm lift height.
$6,518.48· each
CW-L0523

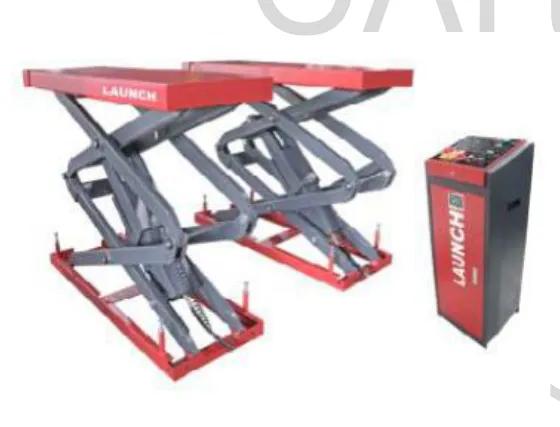

TLT635AF
TLT635AF — vehicle lift: Hidden scissor ultra-thin structure; rated load reaches 3500 kg.
Contact for Pricing
CW-L0524

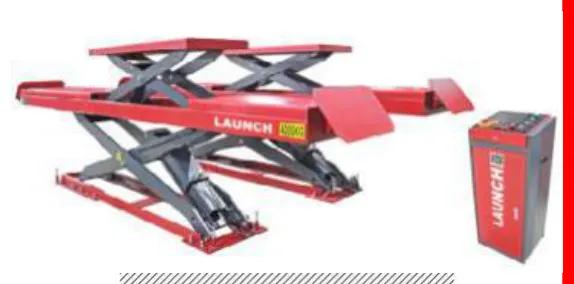

TLT840WA
