245SC
- SKU
- CW-L0502-B
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

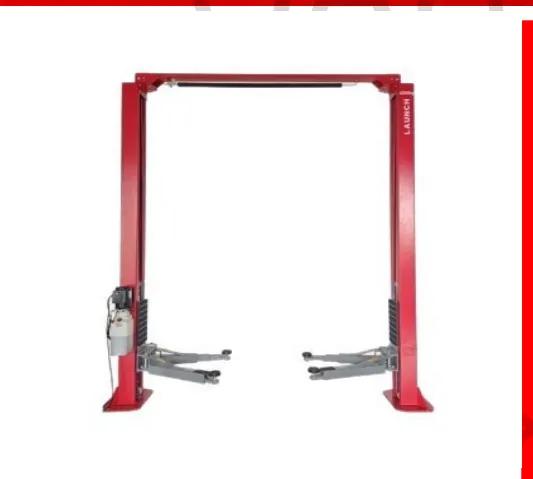

245SC — vehicle lift: Cable and hose are fully encased for a clean appearance.
Features
- •Cable and hose are fully encased for a clean appearance.
- •Designed to national standards for garage/workshop use.
- •Top-mounted limit switch to prevent vehicle collisions.
- •Dual hydraulic cylinder drive system for smooth lifting and lowering.
- •Steel wire rope balance system synchronizes both slide tables, preventing tilting.
- •Minimum padding height of 110 mm suits lower-chassis vehicles.
- •Manual descent control for safe, convenient operation.
- •Uses Q235 national-standard 5 mm thick sheet metal.
Description
245SC is a vehicle lift. Cable and hose are fully encased for a clean appearance. Designed to national standards for garage/workshop use. Top-mounted limit switch to prevent vehicle collisions.
Specifications
| Gross weight | 720 kg |
|---|---|
| Lifting time | ≤55 s |
| Overall width | 3528 mm |
| Column spacing | 2,880 mm |
| Electric motor | 2.2 kW |
| Lifting height | 1850 mm |
| Overall height | 3900 mm |
| Lifting capacity | 4,500 kg |
| Width throughput | 2596 mm |
| Minimum height of support pad from ground | 110 mm |
