Description

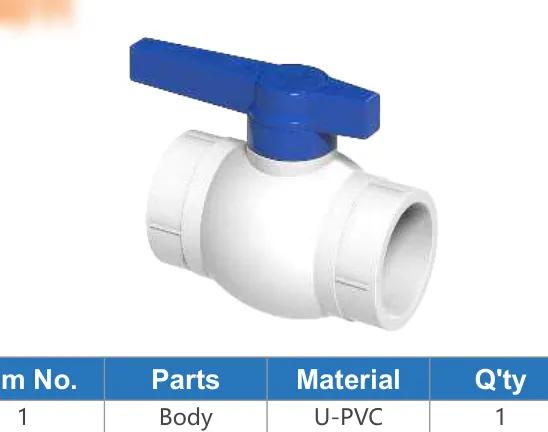

UPVC ball valve, new-type design, with TPE seat seal, NBR O-ring, and ABS/PP handle and cap, 6 sizes from 1/2" to 2". Item No. component table: 1 Body U-PVC, 2 Seat Seal TPE, 3 O-Ring NBR, 4 Stem U-PVC, 5 Handle ABS/PP, 6 Cap ABS/PP. Available in 6 sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2".
Specifications
| 1" | 25 / 42.7 / 88.0 / 102.8 / 86.6 |
|---|---|
| 2" | 50 / 74.0 / 143.3 / 148.1 / 131.2 |
| 1/2" | 15 / 28.7 / 73.7 / 82.5 / 62.2 |
| 3/4" | 20 / 35.0 / 78.2 / 89.5 / 73.9 |
| 1-1/2" | 40 / 61.0 / 123.6 / 148.1 / 113.4 |
| 1-1/4" | 32 / 53.0 / 104.6 / 123.0 / 95.6 |
| Material | Body: U-PVC; Seat Seal: TPE; O-Ring: NBR; Stem: U-PVC; Handle: ABS/PP; Cap: ABS/PP |
| Dimensions | d3 / D / L / L1 / H2 (mm unless noted) |
