Description

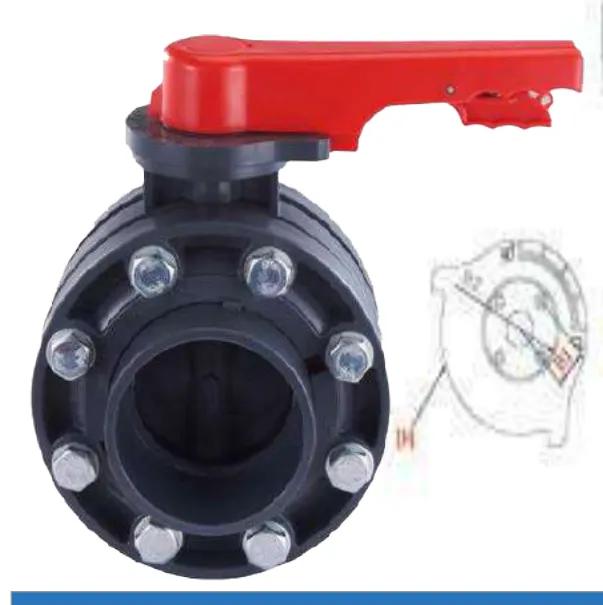

UPVC flanged butterfly valve with TPV seat seal and SS304 stem, to DIN/ANSI/JIS, 7 sizes from 63(2") to 200(8"). Size:2"-8"; Standard: DIN/ANSI/JIS; Flange Connect; Working Pressure: 2"-6" 150PSI, 8" 100PSI. 15-part component table. Available in 7 sizes: 63(2"), 75(2-1/2"), 90(3"), 110(4"), 125(5"), 160(6"), 200(8").
Specifications
| 63(2") | 162 / 128.6 / 53.38 / 108.2 / 87.9 / 15.4 / 59 / 6 / 224 / 37.2 / 241 / 110 / 4-20.5 |
|---|---|
| 90(3") | 190 / 160.7 / 80 / 108.2 / 120 / 15.4 / 59 / 8.5 / 224 / 44 / 281.6 / 133 / 8-19 |
| 110(4") | 222 / 188.7 / 105 / 108.2 / 143 / 15.4 / 59 / 5.19 / 224 / 49 / 309 / 148 / 8-21.5 |
| 125(5") | 258 / 210 / 125 / 108.2 / 168.6 / 15.4 / 59 / 9.5 / 224 / 64 / 370 / 167 / 8-25 |
| 160(6") | 287 / 246.7 / 153.6 / 108.2 / 196.75 / 15.4 / 59 / 3.05 / 332.6 / 68.1 / 379.2 / 184.5 / 8-25 |
| 200(8") | 341 / 295.7 / 200 / 108.2 / 244.93 / 15.4 / 59 / 3.73 / 323.6 / 88 / 433.7 / 212 / 8-25 |
| Material | Body: U-PVC; Disc: U-PVC; Dial: U-PVC; Handle: U-PVC; Lever: U-PVC; Stem: SS304/Ganalized; Seat Seal: TPV; Locking Plate: U-PVC; Cap: U-PVC; Self Tapping Screw: SS304; Washer: SS30 |
| Standard | DIN, ANSI, JIS |
| 75(2-1/2") | 180 / 145 / 65 / 108.2 / 107.2 / 15.4 / 59 / 8.6 / 224 / 43 / 248 / 123 / 4-20.5 |
| Dimensions | D1 / D2 / D3 / D4 / D5 / B1 / B2 / B3 / L / W1 / H1 / H2 / N-∮ (mm unless noted) |
