UPVC DIN/ANSI/JIS/BS/NPT/BSPT Single & Double Union Ball Valve — DN15 (1/2") to DN100 (4")
- SKU
- PVF-0002
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.

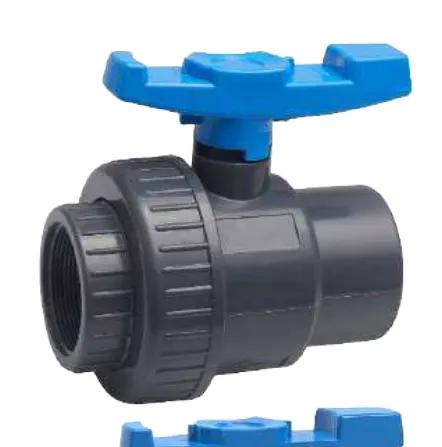

UPVC ball valve with single or double union ends, NBR/EPDM O-ring and TPV seat seal, to DIN/ANSI/JIS/BS/NPT/BSPT, 9 sizes from DN15 (1/2") to DN100 (4").
Description
UPVC ball valve with single or double union ends, NBR/EPDM O-ring and TPV seat seal, to DIN/ANSI/JIS/BS/NPT/BSPT, 9 sizes from DN15 (1/2") to DN100 (4"). Component table (Specification of Material) lists 11 parts with material and qty. Dimensions in mm. Available in 9 sizes: DN15 (1/2"), DN20 (3/4"), DN25 (1"), DN32 (1 1/4"), DN40 (1 1/2"), DN50 (2"), DN65 (2 1/2"), DN80 (3"), DN100 (4").
Specifications
| Material | Handle: U-PVC; Stem O-Ring: NBR/EPDM; Stem: U-PVC; End Connector: U-PVC; Union Nut: U-PVC; Carrier O-Ring: NBR/EPDM; Seat Seal: TPV; Ball: U-PVC; Body: U-PVC; O-Ring: NBR/EPDM; Sea |
|---|---|
| Standard | DIN, ANSI, JIS, BS, NPT, BSPT |
| DN25 (1") | 31.7 / 32.3 / 33.27 / 33.65 / 31.67 / 32.33 / 33.5 / 33.7 / 11.5 / 11 / 98.4 / 25 / 42.8 / 22 / 102 / 87 |
| DN50 (2") | 62.7 / 63.4 / 60.17 / 60.63 / 59.44 / 60.56 / 60.3 / 60.5 / 11.5 / 11 / 165 / 49 / 75.3 / 38 / 164 / 145 |
| DN80 (3") | 89.6 / 90.5 / 88.7 / 89.31 / 88.83 / 89.6 / 88.8 / 89.1 / 8 / 11 / 229.5 / 76 / 106.4 / 51 / 227 / 209 |
| DN100 (4") | 109.5 / 110.6 / 114.07 / 114.76 / 113.98 / 114.7 / 114.2 / 114.5 / 8 / 11 / 271 / 96 / 130.7 / 60 / 217.5 / 248 |
| Dimensions | DIN d2 / DIN d3 / ANSI d2 / ANSI d3 / JIS d2 / JIS d3 / BS d2 / BS d3 / NPT Thd./in / BSPT Thd./in / B / d / D / L / C / A (mm unless noted) |
| DN15 (1/2") | 19.8 / 20.3 / 21.23 / 21.54 / 21.70 / 22.3 / 21.3 / 21.5 / 14 / 14 / 75.3 / 15 / 28.8 / 16 / 77.5 / 68 |
| DN20 (3/4") | 24.8 / 25.4 / 26.57 / 26.87 / 25.70 / 26.3 / 26.7 / 26.9 / 14 / 14 / 86.5 / 20 / 35.2 / 19 / 88.5 / 76 |
| DN32 (1 1/4") | 39.7 / 40.4 / 42.04 / 42.42 / 37.57 / 38.43 / 42 / 42.2 / 11.5 / 11 / 114.8 / 30 / 51.8 / 26 / 116 / 102 |
| DN40 (1 1/2") | 49.7 / 50.4 / 48.11 / 48.56 / 47.54 / 48.46 / 48.2 / 48.4 / 11.5 / 11 / 137 / 39 / 61.8 / 32 / 135.5 / 119 |
| DN65 (2 1/2") | 74.6 / 75.5 / 72.85 / 73.38 / 75.87 / 76.6 / 75.1 / 75.3 / 8 / 11 / 193 / 60 / 89.2 / 41 / 192 / 178 |
