Description

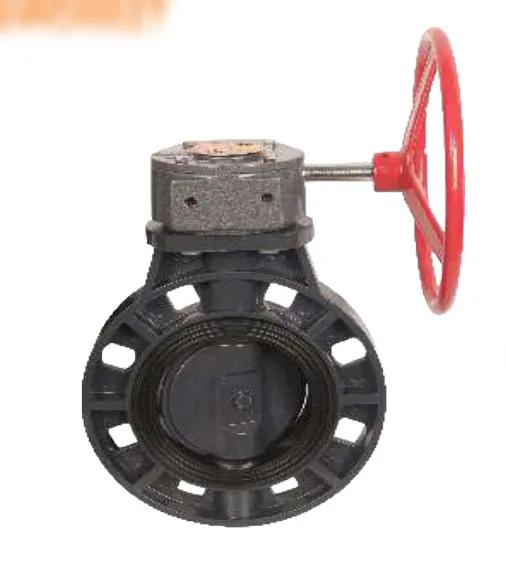

PVC/CPVC/PPH butterfly valve with gear-handle actuator, SS304/SS316 stem, and EPDM/FPM seat seal, to DIN/ANSI/JIS, 17 sizes from ØD to PN (MPa). Table is column-per-size (transposed) in the source; 10-part component table also printed. Available in 17 sizes: ØD, P.C.D. ØD1 (DIN), P.C.D. ØD1 (ANSI), P.C.D. ØD1 (JIS), Ød, L, Ø1, L1, H1, H, M, N, n-Øe (DIN), n-Øe (ANSI), and more.
Specifications
| H | 340 / 385 / 417 / 487 / 551 / 595 / 670 / 770 / 865 |
|---|---|
| L | 54 / 64 / 70 / 88 / 98 / 108 / 88 / 98 / 135 |
| M | 120 / 180 / 180 / 180 / 180 / 180 / 250 / 250 |
| N | 90 / 100 / 100 / 100 / 130 / 130 / 220 / 220 |
| H1 | 140 / 168 / 181 / 215 / 260 / 280 / 410 / 490 / 520 |
| L1 | 120 / 200 / 200 / 200 / 200 / 220 / 220 / 280 / 280 |
| Ø1 | 145 / 280 / 280 / 280 / 280 / 280 / 380 / 380 / 280 |
| ØD | 228 / 258 / 287 / 344 / 412 / 460 / 500 / 565 / 670 |
| Ød | 98 / 122 / 146 / 199 / 255 / 302 / 345 / 395 / 490 |
| Material | Body: PVC/CPVC/PPH; Seat Seal: EPDM/FPM; Disc: PVC/CPVC/PPH; Bolt: SS304; Stem: Steel/SS304/SS316; O-Ring: EPDM/FPM; Key: Steel; Gear-box: Iron; Handle Wheel: Iron; Pin: Steel |
| PN (MPa) | 1 / 1 / 1 / 1 / 0.6 / 0.6 / 0.4 / 0.4 / 0.4 |
| PN (PSI) | 150 / 150 / 150 / 150 / 100 / 100 / 60 / 60 / 60 |
| Standard | DIN, ANSI, JIS |
| Dimensions | 4" (DN100) / 5" (DN125) / 6" (DN150) / 8" (DN200) / 10" (DN250) / 12" (DN300) / 14" (DN350) / 16" (DN400) / 20" (DN500) (mm unless noted) |
| n-Øe (DIN) | 8-Ø19 / 8-Ø19 / 8-Ø23 / 8-Ø23 / 12-Ø25 / 12-Ø25 / 16-Ø25 / 16-Ø27 / 20-Ø32 |
| n-Øe (JIS) | 8-Ø19 / 8-Ø19 / 8-Ø23 / 12-Ø23 / 12-Ø25 / 16-Ø25 / 16-Ø25 / 16-Ø27 |
| n-Øe (ANSI) | 8-Ø19 / 8-Ø19 / 8-Ø23 / 8-Ø23 / 12-Ø25 / 12-Ø25 / 12-Ø29 / 16-Ø29 |
| P.C.D. ØD1 (DIN) | 180 / 210 / 240 / 295 / 350 / 400 / 460 / 515 / 620 |
| P.C.D. ØD1 (JIS) | 175 / 210 / 240 / 290 / 355 / 400 / 445 / 510 |
| P.C.D. ØD1 (ANSI) | 191 / 216 / 241 / 298 / 362 / 432 / 476 / 540 |
