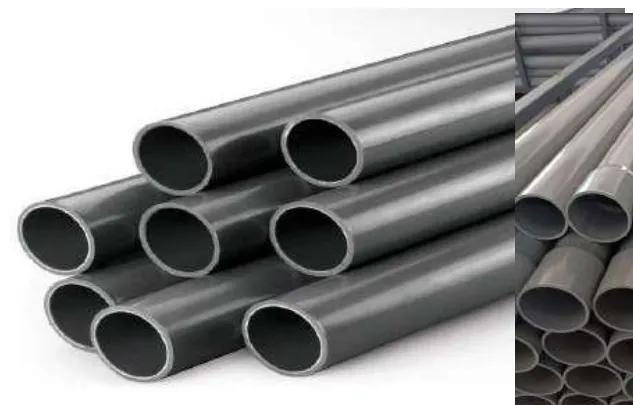

UPVC GB/T 10002.2-2003 / BS EN ISO 1452 / DIN Water Supply Pipe — 20 to 1000
- SKU
- PVF-0032
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
UPVC pressure pipe for water supply, wall thickness by S-series/SDR series, to GB/T 10002.2-2003, BS EN ISO 1452, DIN, 28 sizes from 20 to 1000.
Description
UPVC pressure pipe for water supply, wall thickness by S-series/SDR series, to GB/T 10002.2-2003, BS EN ISO 1452, DIN, 28 sizes from 20 to 1000. Confirm to: GB/T 10002.2-2003, BS EN ISO 1452. Nominal wall thickness δn (mm) by S series/SDR series/nominal pressure (PN); '-' = not offered for that outside diameter/series combination. Available in 28 sizes: 20, 25, 32, 40, 50, 63, 75, 90, 110, 125, 140, 160, 180, 200, and more.
Specifications
| 20 | 15 / - / - / - / - / - / 2.0 / 2.3 |
|---|---|
| 25 | 20 / - / - / - / - / 2.0 / 2.3 / 2.8 |
| 32 | 25 / - / - / - / 2.0 / 2.4 / 2.9 / 3.6 |
| 40 | 32 / - / - / 2.0 / 2.4 / 3.0 / 3.7 / 4.5 |
| 50 | 40 / - / 2.0 / 2.4 / 3.0 / 3.7 / 4.6 / 5.6 |
| 63 | 50 / 2.0 / 2.5 / 3.0 / 3.8 / 4.7 / 5.8 / 7.1 |
| 75 | 65 / 2.3 / 2.9 / 3.6 / 4.5 / 5.6 / 6.9 / 8.4 |
| 90 | 80 / 2.8 / 3.5 / 4.3 / 5.4 / 6.7 / 8.2 / 10.1 |
| 110 | 100 / 2.7 / 3.4 / 4.2 / 5.3 / 6.6 / 8.1 / 10 |
| 125 | - / 3.1 / 3.9 / 4.8 / 6 / 7.4 / 9.2 / 11.4 |
| 140 | 125 / 3.5 / 4.3 / 5.4 / 6.7 / 8.3 / 10.3 / 12.7 |
| 160 | 150 / 4 / 4.9 / 6.2 / 7.7 / 9.5 / 11.8 / 14.6 |
| 180 | - / 4.4 / 5.5 / 6.9 / 8.6 / 10.7 / 13.3 / 16.4 |
| 200 | - / 4.9 / 6.2 / 7.7 / 9.6 / 11.9 / 14.7 / 18.2 |
| 225 | 200 / 5.5 / 6.9 / 8.6 / 10.8 / 13.4 / 16.6 / - |
| 250 | - / 6.2 / 7.7 / 9.6 / 11.9 / 14.8 / 18.4 / - |
| 280 | 250 / 6.9 / 8.6 / 10.7 / 13.4 / 16.6 / 20.6 / - |
| 315 | 300 / 7.7 / 9.7 / 12.1 / 15 / 18.7 / 23.2 / - |
| 355 | 350 / 8.7 / 10.9 / 13.6 / 16.9 / 21.1 / 26.1 / - |
| 400 | 400 / 9.8 / 12.3 / 15.3 / 19.1 / 23.7 / 29.4 / - |
| 450 | - / 11 / 13.8 / 17.2 / 21.5 / 26.7 / 33.1 / - |
| 500 | - / 12.3 / 15.3 / 19.1 / 23.9 / 29.7 / 36.8 / - |
| 560 | - / 13.7 / 17.2 / 21.4 / 26.7 / - / - / - |
| 630 | - / 15.4 / 19.3 / 24.1 / 30.0 / - / - / - |
| 710 | - / 17.4 / 21.8 / 27.2 / - / - / - / - |
| 800 | - / 19.6 / 24.5 / 30.6 / - / - / - / - |
| 900 | - / 22 / 27.6 / - / - / - / - / - |
| 1000 | - / 24.5 / 30.6 / - / - / - / - / - |
| Material | UPVC |
| Standard | GB/T 10002.2-2003, BS EN ISO 1452, DIN |
| Dimensions | DN Size / S16/SDR33/PN6.3 / S12.5/SDR26/PN8 / S10/SDR21/PN10 / S8/SDR17/PN12.5 / S6.3/SDR13.6/PN16 / S5/SDR11/PN20 / S4/SDR9/PN25 (mm unless noted) |
