Description
UPVC Male Threaded Adapter fitting to DIN, 9 sizes from 20*1/2" to 110*4". Available in 9 sizes: 20*1/2", 25*3/4", 32*1", 40*1-1/4", 50*1-1/2", 63*2", 75*2-1/2", 90*3", 110*4".
Specifications
| 32*1" | 37.5 / 32.25 / 31.95 / 23 / 23 / 47.5 / 1" |
|---|---|
| 63*2" | 70.6 / 63.34 / 62.93 / 47.5 / 38.5 / 76.5 / 2" |
| 90*3" | 100.7 / 90.38 / 89.93 / 72 / 52 / 94 / 3" |
| 110*4" | 121.4 / 110.42 / 109.92 / 95 / 62 / 119.5 / 4" |
| 20*1/2" | 26 / 20.24 / 19.96 / 17 / 17 / 38.5 / 1/2" |
| 25*3/4" | 30.4 / 25.24 / 24.95 / 17.8 / 19.5 / 40.5 / 3/4" |
| Material | UPVC (PVC-U) |
| Standard | DIN |
| 40*1-1/4" | 46.2 / 40.28 / 39.95 / 30.3 / 27 / 54.5 / 1-1/4" |
| 50*1-1/2" | 56.8 / 50.33 / 49.94 / 37.6 / 32 / 63.1 / 1-1/2" |
| 75*2-1/2" | 83.6 / 75.35 / 74.93 / 60 / 44.5 / 87.5 / 2-1/2" |

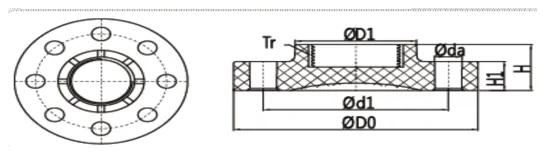

| Dimensions | D0 / D1 / D2 / d / T / L / Tr (mm unless noted) |
