Description
Pipe saddle/tapping clamp for branch take-offs from mains 25-200mm, 43 sizes from 25×1/2" to 200×3". Pipe saddle/tapping clamp for branch take-offs from mains 25-200mm; several cells printed without a decimal point in the source text (e.g. '373' for what is elsewhere 37.3, '742' for 74.2, '2226' for 222.6) - transcribed as-is. Available in 43 sizes: 25×1/2", 25×3/4", 32×1/2", 32*3/4", 32×1", 40×1/2", 40×3/4", 40×1", 50×1/2", 50×3/4", 50×1", 63×1/2", 63×3/4", 63×1", and more.
Specifications

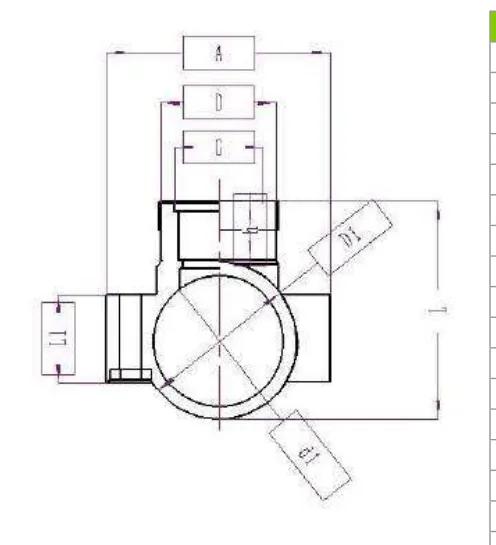

| 110×1 | 158 / 45.1 / 24 / 126.4 / 110 / 147 / 30 / 1" |
|---|---|
| 160x3" | 211 / 102 / 35 / 181 / 160 / 207 / 54 / 3" |
| 32×1" | 78 / 45.1 / 24 / 41 / 32 / 62 / 32 / 1" |
| 40×1" | 85 / 45.1 / 24 / 50 / 40 / 71 / 24 / 1" |
| 50×1" | 85.5 / 45.1 / 24 / 60 / 50 / 79 / 16 / 1" |
| 63×1" | 100 / 45.1 / 24 / 742 / 63 / 98 / 26 / 1" |
| 75×1" | 117.6 / 45.1 / 24 / 89 / 75 / 109 / 26 / 1" |
| 90×1" | 138 / 45.1 / 24 / 105 / 90 / 125 / 30 / 1" |
| 90×2" | 138 / 71.9 / 29 / 105 / 90 / 125 / 30 / 2" |
| 110×2" | 158 / 71.9 / 29 / 126.4 / 110 / 147 / 30 / 2" |
| 160×1" | 211 / 45.1 / 24 / 181 / 160 / 207 / 54 / 1" |
| 160×2" | 211 / 71.9 / 29 / 181 / 160 / 207 / 54 / 2" |
| 200×1" | 222.6 / 45.1 / 24 / 222.6 / 200 / 254 / 58 / 1" |
| 200×2" | 222.6 / 102 / 29 / 222.6 / 200 / 254 / 58 / 2" |
| 200×3" | 2226 / 129 / 35 / 222.6 / 200 / 254 / 58 / 3" |
| 32*3/4" | 78 / 37.3 / 20 / 41 / 32 / 62 / 32 / 3/4" |
| 25×1/2" | 76 / 30.6 / 17.5 / 34 / 25 / 49 / 22 / 1/2" |
| 25×3/4" | 76 / 37.3 / 20 / 34 / 25 / 51 / 22 / 3/4" |
| 32×1/2" | 78 / 30.6 / 17.5 / 41 / 32 / 62 / 32 / 1/2" |
| 40×1/2" | 85 / 30.6 / 17.5 / 50 / 40 / 71 / 24 / 1/2" |
| 40×3/4" | 85 / 373 / 20 / 50 / 40 / 71 / 24 / 3/4" |
| 50×1/2" | 85.5 / 30.6 / 17.5 / 60 / 50 / 79 / 16 / 1/2" |
| 50×3/4" | 85.5 / 373 / 20 / 60 / 50 / 79 / 16 / 3/4" |
| 63×1/2" | 100 / 30.6 / 17.5 / 74.2 / 63 / 98 / 26 / 1/2" |
| 63×3/4" | 100 / 373 / 20 / 74.2 / 63 / 98 / 26 / 3/4" |
| 75×1/2" | 117.6 / 30.6 / 17.5 / 89 / 75 / 109 / 26 / 1/2" |
| 75×3/4" | 117.6 / 373 / 20 / 89 / 75 / 109 / 26 / 3/4" |
| 90×1/2" | 138 / 30.6 / 17.5 / 105 / 90 / 125 / 30 / 1/2" |
| 90×3/4" | 138 / 373 / 20 / 105 / 90 / 125 / 30 / 3/4" |
| Material | PP (band clamp shown with metal bolts in photo) |
| 110×1/2" | 158 / 30.6 / 17.5 / 126.4 / 110 / 147 / 30 / 1/2" |
| 110×3/4" | 158 / 373 / 20 / 126.4 / 110 / 147 / 30 / 3/4" |
| 160×1/2" | 211 / 30.6 / 17.5 / 181 / 160 / 207 / 54 / 1/2" |
| 160×3/4" | 211 / 37.3 / 20 / 181 / 160 / 207 / 54 / 3/4" |
| 200×1/2" | 222.6 / 30.6 / 17.5 / 222.6 / 200 / 254 / 58 / 1/2" |
| 200×3/4" | 222.6 / 373 / 20 / 222.6 / 200 / 254 / 58 / 3/4" |
| 90×1.1/2" | 138 / 61.1 / 29 / 105 / 90 / 125 / 30 / 1.1/2" |
| 90×1.1/4" | 138 / 54 / 29 / 105 / 90 / 125 / 30 / 1.1/4" |
| Dimensions | A / D / h / D1 / d1 / L / L1 / G (mm unless noted) |
| 110×1.1/2" | 158 / 61.1 / 29 / 126.4 / 110 / 147 / 30 / 1.1/2" |
| 160×1.1/2" | 211 / 61.1 / 29 / 181 / 160 / 207 / 54 / 1.1/2" |
| 160×1.1/4" | 211 / 54 / 29 / 181 / 160 / 207 / 54 / 1.1/4" |
| 200×1.1/2" | 222.6 / 61.1 / 29 / 222.6 / 200 / 254 / 58 / 1.1/2" |
| 200×1.1/4" | 222.6 / 54 / 29 / 222.6 / 200 / 254 / 58 / 1.1/4" |
| 110× 1.1/4" | 158 / 54 / 29 / 126.4 / 110 / 147 / 30 / 1.1/4" |
