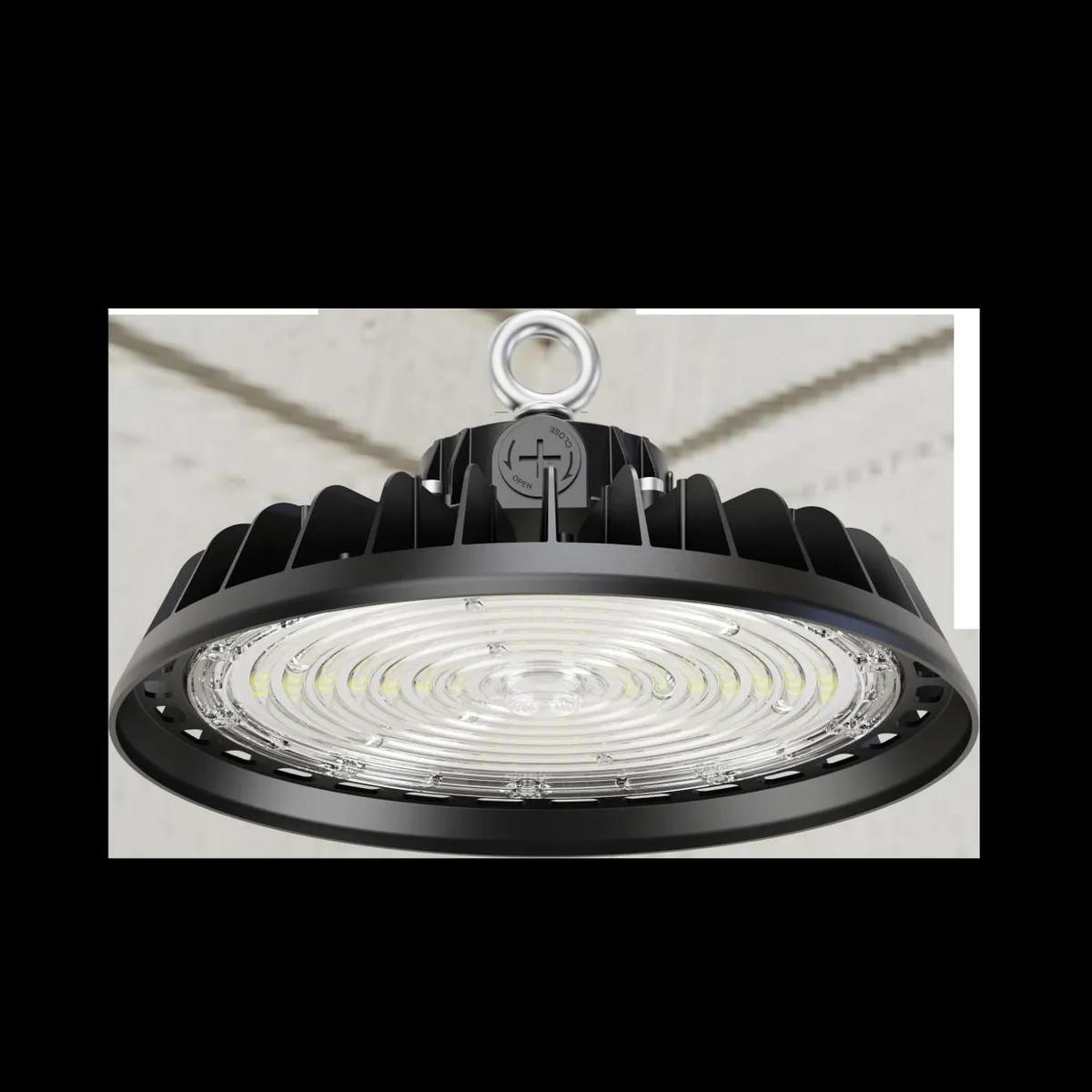

LED UFO High Bay Light — L2204 Series (60–500W)
- SKU
- LGT-L2204
- Unit
- each
- Min. Order
- 1
Contact for Pricing
Volume pricing quoted per order.
UFO-style round LED high bay, 60–500W, up to 170 lm/W, IP65/IK08, DLC Premium/ETL, dip-switch power and CCT select, 5-year warranty.
Features
- •Light efficiency 150lm/W, 170lm/W
- •Multiple power settings controlled by a dip switch, CCT adjustable optional
- •High bright LEDs
- •Optics of 120/90/60 degrees available on request
- •High-transmittance and anti-UV polycarbonate lens
- •Optional pluggable sensor, emergency battery backup
- •Excellent thermal management design
- •Die-casting aluminum with polyester powder coat finish
- •IP65/IK08 rating for outdoor usage
- •Hook hanging installation is available
- •Energy savings, no UV and IR radiations, emits low heat
- •0/1-10V dimming for low power consumption
- •DLC premium/ETL/cETL/FCC/CE/RoHS approval
- •5 years warranty
- •Selectable lumens and seleCCTable colors
- •Optional accessories: Power Adjustable cap, Power&CCT Adjustable cap, Emergency Battery 25W 90min, Emergency Battery 40W 90min, 60/90-degree lens, 120-degree lens, ALU Reflector, PC Reflector, US plug, EU plug, AU plug, O-Hook, G-Hook, U Bracket, Safety Cable
Description
UFO-style round LED high bay light with die-cast aluminum housing, polycarbonate lens with integrated optics, hook/loop hanging or bracket mounting, dip-switch selectable wattage (100%/80%/60%) and optional selectable CCT (3000K/4000K/5000K). For car parks, large areas, industrial halls & warehouses, and sport facilities. 0/1-10V dimming (DALI2 optional); dip-switch wattage select 100%/80%/60% (embedded switch graphic also shows 50%/75%/100%); optional CCT select 3000K/4000K/5000K; optional pluggable motion/daylight sensor (12V-24V DC >30mA supply, 0-10V dim output max 25mA sinking, remote range 50ft/15m, detection radius 20%/50%/75%/100% (1-8m), mounting height max 40ft/12m, time setting 10s/1min/5min/10min/15min/
Specifications
| EMC | EN 55015:2019/A11:2020, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015 |
|---|---|
| THD | IEC 61000-3-2 Class C, <20% |
| cct | 3000K / 4000K / 5000K / 5700K / 6500K |
| cri | CRI>70 standard, CRI>80 optional |
| ULOR | 0% |
| optic | Polycarbonate |
| power | 60W/80W/100W/150W/200W/240W/300W/400W/500W |
| housing | Aluminium |
| LED type | SMD2835 high-brightness LEDs |
| efficacy | 150lm/W, 170lm/W |
| ikRating | IK08 |
| ipRating | IP65 |
| warranty | 5 years |
| beamAngle | 60 / 90 / 120 degrees |
| emergency | Optional auxiliary battery |
| protector | Polycarbonate (with integrated lenses) |
| startTime | <=0.2S |
| driverType | Constant current (CC) |
| 60W variant | dimensions: D200 x H140 mm · packageSize: L230*W230*H125mm · netWeight: 1.4kg · grossWeight: 1.8kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.00661m3 · container20GP: 4234pcs · container40HQ: 10283pcs |
| 80W variant | dimensions: D200 x H140 mm · packageSize: L230*W230*H125mm · netWeight: 1.4kg · grossWeight: 1.8kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.00661m3 · container20GP: 4234pcs · container40HQ: 10283pcs |
| 100W variant | dimensions: D230 x H147 mm · packageSize: L270*W270*H160mm · netWeight: 1.6kg · grossWeight: 2.0kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0052m3 · container20GP: 2736pcs · container40HQ: 6377pcs |
| 150W variant | dimensions: D275 x H161 mm · packageSize: L310*W310*H170mm · netWeight: 2.2kg · grossWeight: 2.7kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0085m3 · container20GP: 1955pcs (packaging graphic shows 1995) · container40HQ: 4588pcs |
| 200W variant | dimensions: D320 x H170 mm · packageSize: L360*W360*H180mm · netWeight: 2.8kg · grossWeight: 3.4kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0233m3 · container20GP: 1344pcs · container40HQ: 3003pcs (packaging graphic shows 3004) |
| 240W variant | dimensions: D320 x H170 mm · packageSize: L360*W360*H180mm · netWeight: 2.8kg · grossWeight: 3.4kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0233m3 · container20GP: 1344pcs · container40HQ: 3003pcs |
| 300W variant | dimensions: D320 x H170 mm · packageSize: L360*W360*H180mm · netWeight: 2.8kg · grossWeight: 3.4kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0233m3 · container20GP: 1344pcs · container40HQ: 3003pcs |
| 400W variant | dimensions: D390 x H202 mm · packageSize: L432*W432*H204mm · netWeight: 4.46kg · grossWeight: 5.3kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0381m3 · container20GP: 688pcs · container40HQ: 1672pcs |
| 500W variant | dimensions: D390 x H202 mm · packageSize: L432*W432*H204mm · netWeight: 4.46kg · grossWeight: 5.3kg · qtyPerCtn: 1PCS/CTN · singlePieceVolume: 0.0381m3 · container20GP: 688pcs · container40HQ: 1672pcs |
| housingFinish | Electrostatic polyester powder coating |
| Certifications | DLC Premium, ETL/cETL (Intertek), CE, RoHS, FCC, IP65, IK08, 5 years warranty |
| colorTolerance | Ra70 <=7, Ra80 <=5 |
| driverIncluded | Yes |
| mountingOption | Loop Hanging/Bracket Mounted |
| nominalVoltage | 100-277V / 120-347V / 277-480V, 50/60Hz |
| safetyFeatures | Open circuit protection; Short circuit protection; Overvoltage protection |
| standardColour | RAL 9017 black |
| electricalClass | Class I EU |
| lifetimeAtTq25C | {"L70B10": ">100,000h", "L80B10": ">50,000h", "L90B10": ">30,000h", "switchingCycles": ">100,000 times"} |
| overvoltageNote | For fixed Class 1 luminaires, overvoltage protective devices which comply with IEC 61643-11 shall be disconnected from the circuit. |
| powerEfficiency | >=93% |
| surgeProtection | 6KV Line-Line, 6KV Line-Earth |
| testingStandard | LM 79-08 (all measurements in ISO17025 accredited laboratory) |
| controlProtocols | 0/1-10V, DALI2 (optional) |
| withstandVoltage | 1.5KV 60S 10mA |
| operatingHumidity | 10-90%RH |
| warmUpTimeTo60pct | 0.5S |
| operatingTemperature | -20C to +45C (Ta) |
| powerFactorAtFullLoad | 0.9 |
| powerVsLightOutputRate | {"100%": "1", "80%": "1.05", "60%": "1.1"} |
| recommendedInstallationHeight | 4m to 12m |
